01 - Backguard
02 - Section
03 - Main Top
04 - Power Lock
05 - Burner

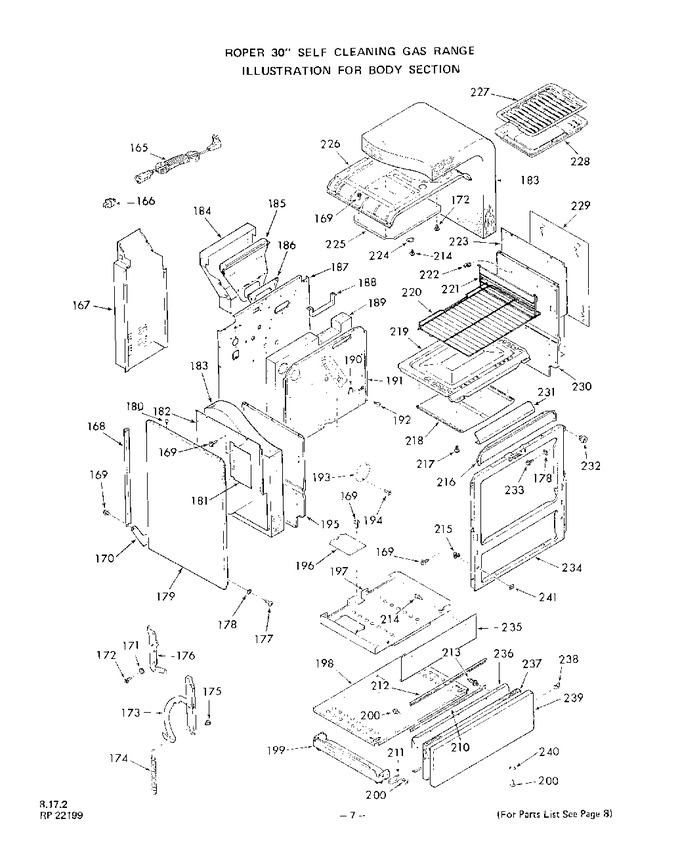

06 - Body
07 - Oven Door
08 - Rotisserie , Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 165 | 235822 | Range Service Cord |
|
- | |||||
| 166 | 232150 | Disconnect |
|
- | |||||
| 167 | 310579 | Wire Cover |
|
- | |||||
| 168 | 309986 | Stiffener - Body Side (lt. Or Rt.) |
|
- | |||||
| 169 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 170 | 293420 | Lower Support - Body Side (right) |
|
- | |||||
| 170 | 293421 | Lower Support - Body Side (left) |
|
- | |||||
| 171 | 69648 | Lockwasher |
|
Immediately | $ 17.61 | ||||
| 172 | 102429 | Screw 10 - 32 X 3/8`` |
|
- | |||||
| 173 | 293971 | Oven Door Hinge - Lt. Or Rt. (inc. Key 175) |
|
- | |||||
| 174 | 308839 | Spring - Oven Door (lt. Or Rt.) |
|
- | |||||
| 175 | 293224 | Shoulder Rivet |
|
- | |||||
| 176 | 301389 | Hinge Bracket W/roller (inc. Key 175) (left) |
|
- | |||||
| 176 | 301390 | Hinge Bracket W/roller (inc. Key 175) (right) |
|
- | |||||
| 177 | 282634 | Screw 8abx3/4`` |
|
- | |||||
| 178 | 106462 | Washer |
|
- | |||||
| 179 | 321924 | Body Side - Lt. Or Rt. (inc. Key 229) (almond) |
|
- | |||||
| 179 | 321920 | Body Side - Lt. Or Rt. (inc. Key 229) (white) |
|
- | |||||
| 179 | 321923 | Body Side - Lt. Or Rt. (inc. Key 229) (golden Wheat) |
|
- | |||||
| 180 | 301769 | Bumper |
|
- | |||||
| 181 | 311029 | Baffel-side Panel (lt Or Rt) |
|
- | |||||
| 182 | 322075 | Upper Insulation Retainer-lt. |
|
- | |||||
| 183 | 282953 | Insulation-oven Top & Sides |
|
- | |||||
| 184 | 310577 | Cover-flue Deflector |
|
- | |||||
| 185 | 294197 | Flue Deflector |
|
- | |||||
| 186 | 282157 | Gasket-flue Deflector |
|
- | |||||
| 187 | 312014 | Main Back |
|
- | |||||
| 188 | 282156 | Insulation Retainer - Flue |
|
- | |||||
| 189 | 282535 | Insulation-oven Back |
|
- | |||||
| 190 | 229607 | Cover Plate, Rotisserie |
|
- | |||||
| 191 | 312013 | Oven Back |
|
- | |||||
| 192 | 289730 | Shoulder Bolt |
|
- | |||||
| 193 | 282245 | Cover Plate |
|
- | |||||
| 194 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 195 | 285482 | Oven Side-left |
|
- | |||||
| 196 | 321274 | Access Plate |
|
- | |||||
| 197 | 321272 | Bottom-oven Burner |
|
- | |||||
| 198 | 319808 | Main Bottom |
|
- | |||||
| 199 | 310964 | Base W/levelers (lt. Or Rt.) |
|
- | |||||
| 200 | 321162 | Screw 10-32 X 3/4`` |
|
- | |||||
| 210 | 295277 | Retainer - Seal |
|
- | |||||
| 211 | W10900107 | Support - Snap On Panel (lt. Or Rt.) (Replaces: 311211) |
|
Immediately | $ 51.87 | ||||
| 212 | 295278 | Seal |
|
- | |||||
| 213 | 313671 | Strike (2 Required) |
|
- | |||||
| 214 | 321162 | Screw 10-32 X 3/4`` |
|
- | |||||
| 215 | 71003 | Catch-lt Or Rt |
|
- | |||||
| 216 | 282118 | Front Panel-broiler Burner |
|
- | |||||
| 217 | 97220 | Screw 6-32x1/4`` |
|
- | |||||
| 218 | 282127 | Baffle - Oven Bottom |
|
- | |||||
| 219 | 283457 | Oven Bottom (inc Key 218) |
|
- | |||||
| 220 | 305361 | Oven Rack (2 Req) |
|
- | |||||
| 221 | 306149 | Oven Rack Guide (right) |
|
- | |||||
| 221 | 306150 | Oven Rack Guide (left) |
|
- | |||||
| 222 | 288392 | Retainer - Thermostat Bulb (2 Req.) |
|
- | |||||
| 223 | 322073 | Upper Insulation Retainer - Right |
|
- | |||||
| 224 | 237762 | Cover Plate-thermostat Bulb |
|
- | |||||
| 225 | 285860 | Baffle - Oven Top |
|
- | |||||
| 226 | 282102 | Oven Top |
|
- | |||||
| 227 | 282273 | Broiler Pan Grid |
|
- | |||||
| 228 | 282278 | Broiler Pan |
|
- | |||||
| 229 | 239603 | Heat Reflector - Rt. Or Lt. |
|
- | |||||
| 230 | 294195 | Oven Side - Rt. |
|
- | |||||
| 231 | 281574 | Heat Shield-broiler Burner |
|
- | |||||
| 232 | 100576 | Screw Grommet (6 Required) |
|
- | |||||
| 233 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 234 | 321919 | Front Frame W/rivets |
|
- | |||||
| 235 | 304125 | Reflector - Front Frame |
|
- | |||||
| 236 | 4396923 | Lining-snap On Panel (Replaces: 310976) |
|
Immediately | $ 52.04 | ||||
| 237 | 282952 | Insulation |
|
- | |||||
| 238 | 108069 | Speed Nut 10 - 32 |
|
- | |||||
| 239 | 311514 | Front - Snap On Panel (white) |
|
- | |||||
| 239 | 311517 | Front-snap On Panel (golden Wheat) |
|
- | |||||
| 239 | 311518 | Front - Snap On Panel (almond) |
|
- | |||||
| 240 | 21067 | Washer |
|
- | |||||
| 241 | 310218 | Washer |
|
- |
