02 - Control Panel
03 - Gas Control
04 - Door Parts
05 - Broiler Drawer Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:

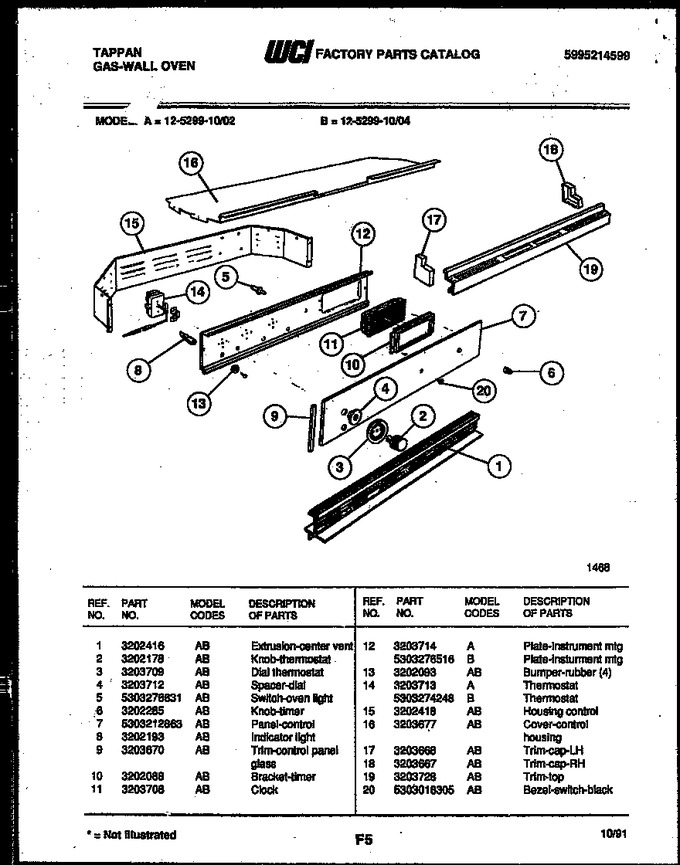

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202416 | Extrusion-center Vent |
|
- | |||||
| 2 | 3202178 | Knob-thermostat |
|
- | |||||
| 3 | 3203709 | Dial Thermostat |
|
- | |||||
| 4 | 3203712 | Spacer-dial |
|
- | |||||
| 5 | 5303276631 | Switch-oven Light |
|
- | |||||
| 6 | 3202285 | Knob-timer |
|
- | |||||
| 7 | 5303212863 | Panel-control |
|
- | |||||
| 8 | 3202193 | Indicator Light |
|
- | |||||
| 9 | 3203670 | Trim-control Panel Glass |
|
- | |||||
| 10 | 3202088 | Bracket-timer |
|
- | |||||
| 11 | 3203708 | Clock |
|
- | |||||
| 12 | 3203714 | Plate-instrument Mtg. |
|
- | |||||
| 13 | 3202093 | Bumper, Rubber, (4) |
|
- | |||||
| 14 | 3203713 | Thermostat |
|
- | |||||
| 15 | 3202418 | Housing-control |
|
- | |||||
| 16 | 3203677 | Cover-control Housing |
|
- | |||||
| 17 | 3203668 | Trim Cap (lh) |
|
- | |||||
| 18 | 3203667 | Trim Cap (rh) |
|
- | |||||
| 19 | 3203728 | Trim-top |
|
- | |||||
| 20 | 5303016305 | Bezel-switch Black |
|
- |
