Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Door Parts
03 - Door Parts

Diagram for 04 - Gas Control
04 - Gas Control

Diagram for 05 - Body Parts
05 - Body Parts

Diagram for 06 - Wrapper And Body Parts
06 - Wrapper And Body Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 3202088 Bracket-timer Appelez-nous -
3 3203708 Clock Appelez-nous -
4 3202196 Switch-light Appelez-nous -
5 3203713 Thermostat Appelez-nous -
6 3203714 Plate-inst. Mtg Appelez-nous -
7 3202193 Light Indicator (1) Appelez-nous -
8 3202093 Bumper (4) Appelez-nous -
9 3203670 Trim-control Pnl. Appelez-nous -
10 3202178 Knob-thermo. (1) Appelez-nous -
11 3202416 Extrusion-cent. Vent Appelez-nous -
12 3203674 Knob-timer Appelez-nous -
13 3203658 Panel-control Appelez-nous -
14 3202418 Housing-control Appelez-nous -
15 3203677 Cover-control Hsg. Appelez-nous -
16 3203712 Spacer-dial Appelez-nous -
17 3203709 Dial-thermo. Appelez-nous -
18 3016305 Bezel-switch Appelez-nous -
1A 3203728 Trim-top Okm Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

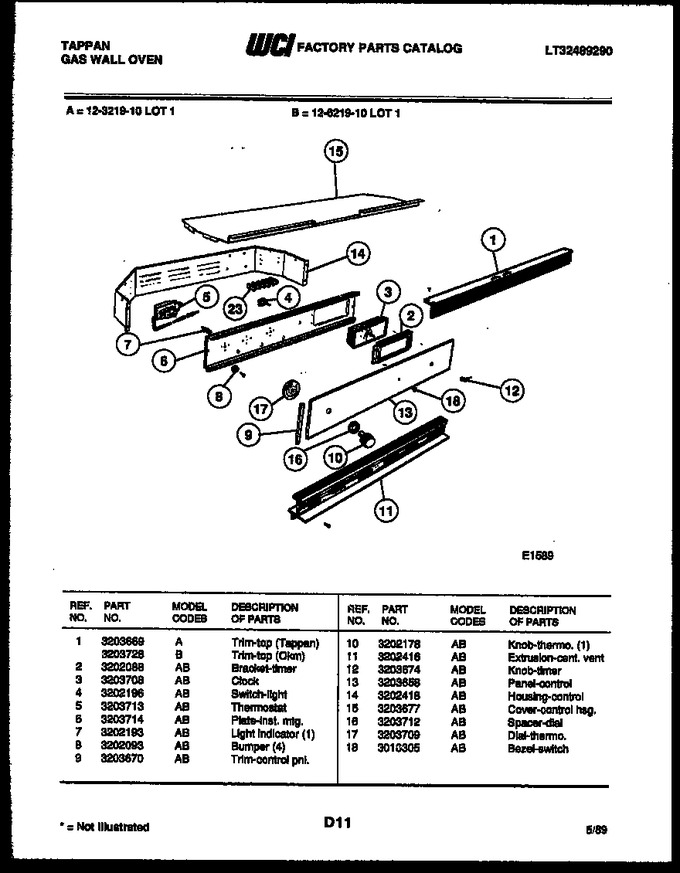

Diagram for 12-6219-00-01
