New Model Search:

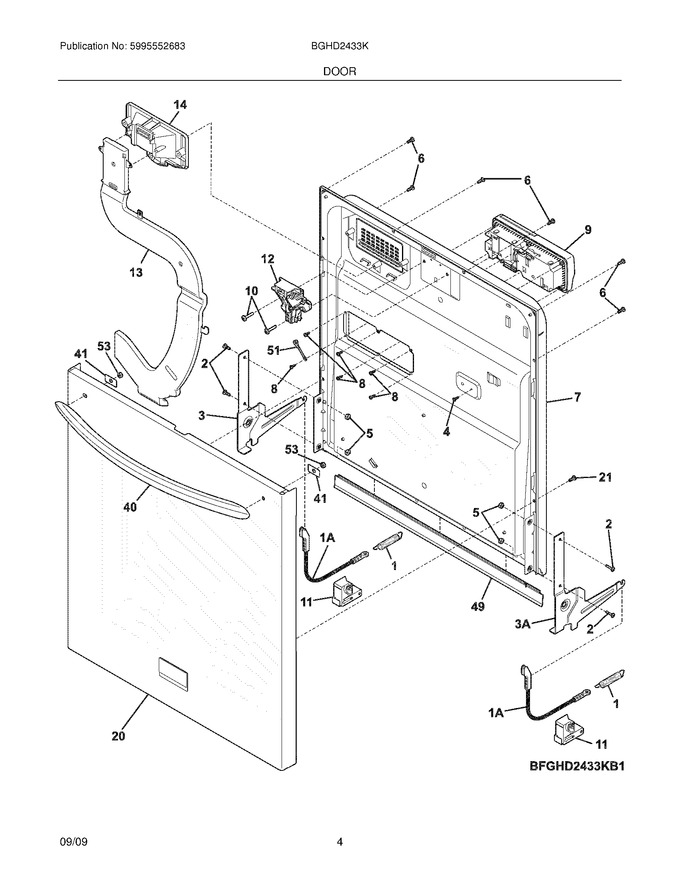

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154579101 | Spring,friction Pulley ,(2) |
|
Immediately | $ 40.50 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304513274 | Arm Assy,lh (Replaces: 154691201) |
|
Immediately | $ 66.56 | ||||
| 4 | 808326801 | Screw,ground ,no.8-18 X .375 (Replaces: 154409401) |
|
$ 2.84 | |||||
| 5 | 154079601 | Nut,arm Assy ,and Handle Mtg. |
|
$ 0.41 | |||||
| 6 | 154783101 | Screw,phillips ,8-10 X .7 (Replaces: 154282901) |
|
Immediately | $ 7.09 | ||||
| 7 | 154743503 | Liner,door Assembly ,grey ,complete |
|
$ 134.82 | |||||
| 8 | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| 10 | 154103702 | Screw-latch Mtg, (2) |
|
$ 13.46 | |||||
| 11 | 154579201 | Pulley,friction ,lh |
|
Immediately | $ 47.48 | ||||
| 11 | 154579202 | Pulley,friction ,rh |
|
Immediately | $ 47.48 | ||||
| 13 | 154755801 | Duct Assembly,vent ,w/tape |
|
$ 83.83 | |||||
| 14 | 154733701 | Vent Assy,dry ,w/gaskets |
|
- | |||||
| 20 | 154790805 | Door Assembly,w/insullation ,stainless ,w/badge |
|
$ 224.07 | |||||
| 21 | 154754701 | Screw,truss Hd ,8-18 Type Ab ,(2) |
|
$ 3.55 | |||||
| 40 | 5304532242 | Handle,towel Bar ,stainless (Replaces: 154724905) |
|
$ 121.40 | |||||
| 41 | 154760101 | Bracket,handle Support ,(2) |
|
$ 8.68 | |||||
| 49 | 809006501 | Gasket,door ,bottom (Replaces: 154759101) |
|
Immediately | $ 36.22 | ||||
| 51 | 154320301 | Clamp,drip Loop ,wire |
|
$ 62.69 | |||||
| 53 | 154425001 | Nut,keps ,(2) ,handle Mtg. |
|
$ 9.93 | |||||
| 1A | 154756401 | Cable,friction Pulley ,(2) (Replaces: 154578801) |
|
Immediately | $ 11.89 | ||||
| 3A | 5304513274 | Arm Assy,rh (Replaces: 154691101) |
|
Immediately | $ 66.56 | ||||
| F12 | 154758101 | Latch Assembly,door |
|
- | |||||
| F9 | 5304507354 | Dispenser,det/rinse Aid ,w/read Switch (Replaces: 154542107) |
|
Immediately | $ 77.60 | ||||
| NI | 154647101 | Hinge Pin,arm Assy |
|
$ 14.18 | |||||
| NI | 5304525214 | Shield,dispenser Assy (Replaces: 154719301) |
|
Immediately | $ 10.13 | ||||
| NI | 154200601 | Screw,no.10-16 X 3/8 |
|
$ 7.98 | |||||
| NI | 154436201 | Screw,dry Duct ,(3) |
|
- | |||||
| NI | 5304538695 | Insulation,door (Replaces: 154253201) |
|
- | |||||
| NI | 154686401 | Bearing,hinge Pin |
|
$ 10.63 |
