SELECT A DIAGRAM

02 - Backguard


03 - Main Top


04 - Power Lock


05 - Burner


06 - Body


07 - Oven Door


08 - Rotisserie , Griddle

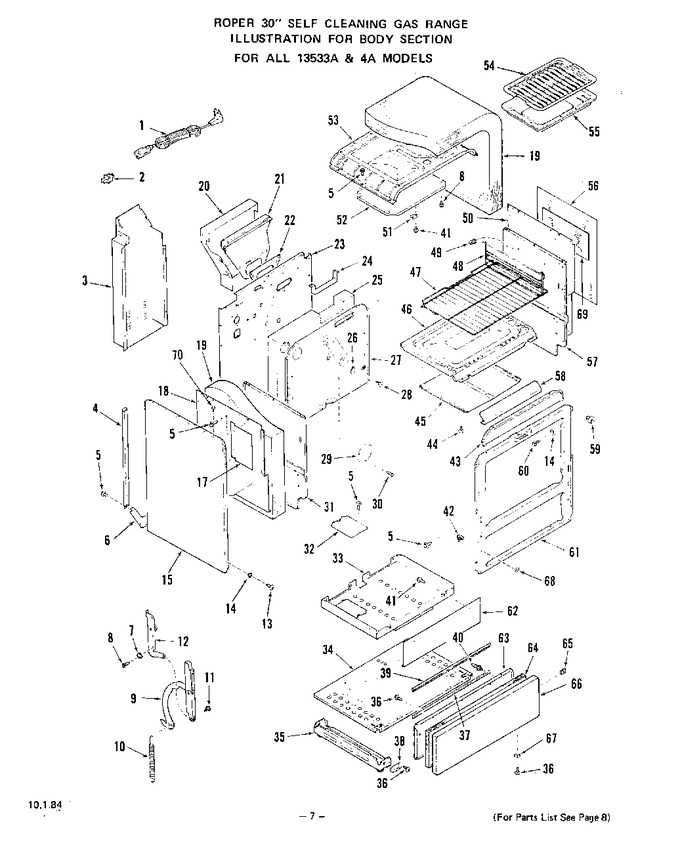

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	235822		Range Service Cord		Appelez-nous	-
2	232150		Disconnect		Appelez-nous	-
3	324830		Wire Cover		Appelez-nous	-
4	309986		Stiffener - Body Side (lt. Or Rt.)		Appelez-nous	-
5	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
6	293421		Lower Support - Body Side (left)		Appelez-nous	-
6	293420		Lower Support - Body Side (right)		Appelez-nous	-
7	69648		Lockwasher			Immediately	$ 17.61
8	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
9	293971		Oven Door Hinge-lt. Or Rt. (inc`s. Key 11)		Appelez-nous	-
10	308839		Spring - Oven Door (lt. Or Rt.)		Appelez-nous	-
11	293224		Shoulder Rivet		Appelez-nous	-
12	325651		Hinge Bracket W/roller (inc. Key 11) (left)		Appelez-nous	-
12	325652		Hinge Bracket W/roller (inc. Key 11) (right)		Appelez-nous	-
13	282634		Screw 8abx3/4``		Appelez-nous	-
14	106462		Washer		Appelez-nous	-
15	326822		Body Side W/overlay-lt. Or Rt.(inc.56&69) (almond)		Appelez-nous	-
15	326818		Body Side W/overlay-lt. Or Rt.(inc.56&69) (white)		Appelez-nous	-
15	326821		Body Side W/overlay-lt. Or Rt.(inc.56&69) (golden Wheat)		Appelez-nous	-
17	311029		Baffel-side Panel (lt Or Rt)		Appelez-nous	-
18	322075		Upper Insulation Retainer-lt.		Appelez-nous	-
19	282953		Insulation-oven Top & Sides		Appelez-nous	-
20	324827		Cover-flue Deflector		Appelez-nous	-
21	294197		Flue Deflector		Appelez-nous	-
22	282157		Gasket-flue Deflector		Appelez-nous	-
23	324820		Main Back		Appelez-nous	-
24	282156		Insulation Retainer - Flue		Appelez-nous	-
25	282535		Insulation-oven Back		Appelez-nous	-
26	229607		Cover Plate, Rotisserie		Appelez-nous	-
27	312013		Oven Back		Appelez-nous	-
28	289730		Shoulder Bolt		Appelez-nous	-
29	282245		Cover Plate		Appelez-nous	-
30	316365		Screw 10-32x7/16``		Appelez-nous	-
31	285482		Oven Side-left		Appelez-nous	-
32	321274		Access Plate		Appelez-nous	-
33	321272		Bottom-oven Burner		Appelez-nous	-
34	324818		Main Bottom		Appelez-nous	-
35	310964		Base W/levelers (lt. Or Rt.)		Appelez-nous	-
36	321162		Screw 10-32 X 3/4``		Appelez-nous	-
37	295277		Retainer - Seal		Appelez-nous	-
38	W10900107		Support - Snap On Panel (lt. Or Rt.)   (Replaces: 311211)			Immediately	$ 51.87
39	295278		Seal		Appelez-nous	-
40	299263		Strike (2 Required)		Appelez-nous	-
41	321162		Screw 10-32 X 3/4``		Appelez-nous	-
42	71003		Catch-lt Or Rt		Appelez-nous	-
43	282118		Front Panel-broiler Burner		Appelez-nous	-
44	97220		Screw 6-32x1/4``		Appelez-nous	-
45	282127		Baffle - Oven Bottom		Appelez-nous	-
46	283457		Oven Bottom (inc. Key 45)		Appelez-nous	-
47	305361		Oven Rack (2 Req)		Appelez-nous	-
48	306149		Oven Rack Guide (right)		Appelez-nous	-
48	306150		Oven Rack Guide (left)		Appelez-nous	-
49	321539		Retainer-thermostat Bulb (2 Req)		Appelez-nous	-
50	322073		Upper Insulation Retainer - Right		Appelez-nous	-
51	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
52	285860		Baffle - Oven Top		Appelez-nous	-
53	282102		Oven Top		Appelez-nous	-
54	282273		Broiler Pan Grid		Appelez-nous	-
55	282278		Broiler Pan		Appelez-nous	-
56	239603		Heat Reflector - Rt. Or Lt.		Appelez-nous	-
57	294195		Oven Side - Rt.		Appelez-nous	-
58	281574		Heat Shield-broiler Burner		Appelez-nous	-
59	100576		Screw Grommet (6 Required)		Appelez-nous	-
60	316365		Screw 10-32x7/16``		Appelez-nous	-
61	321919		Front Frame W/rivets		Appelez-nous	-
62	304125		Reflector - Front Frame		Appelez-nous	-
63	4396923		Lining-snap On Panel   (Replaces: 310976)			Immediately	$ 52.04
64	282952		Insulation		Appelez-nous	-
65	108069		Speed Nut 10 - 32		Appelez-nous	-
66	311517		Front-snap On Panel (golden Wheat)		Appelez-nous	-
66	311518		Front - Snap On Panel (almond)		Appelez-nous	-
66	311514		Front - Snap On Panel (white)		Appelez-nous	-
67	21067		Washer		Appelez-nous	-
68	310218		Washer		Appelez-nous	-
69	326070		Insulation		Appelez-nous	-
70	301769		Bumper (2 Req)		Appelez-nous	-
