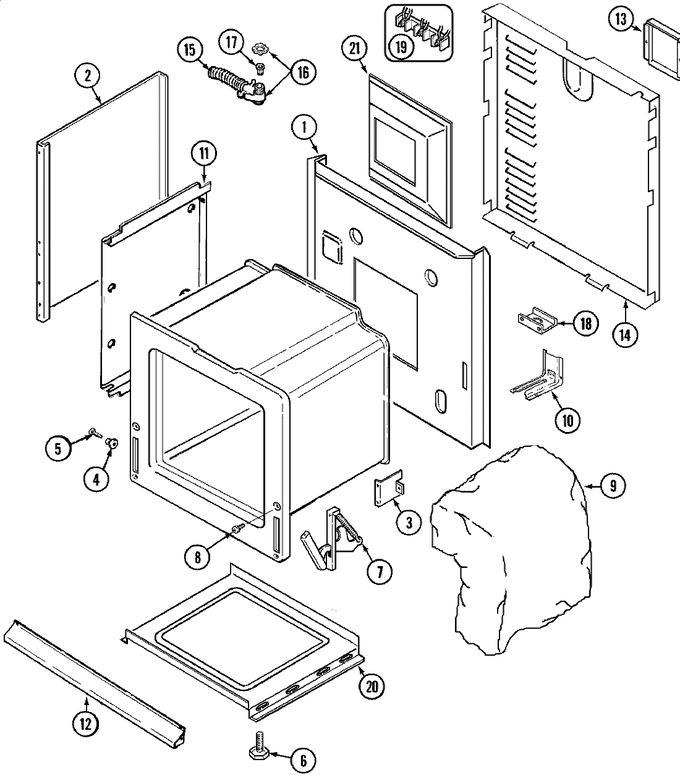

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door
03 - Internal Controls
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F205-80 | Back, Main | 01 |
|
- | ||||
| 2 | 2618F108-70 | Panel, Side (rt-blk) | 01 |
|
- | ||||
| 2 | 2618F109-70 | Panel, Side (lt-blk) | 01 |
|
- | ||||
| 2 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | 3807F400-51 | Support,oven Rear | 01 |
|
- | ||||
| 4 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 5 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 01 |
|
Immediately | $ 6.98 | |||
| 6 | 74001311 | Leg, Leveling | 01 |
|
- | ||||
| 7 | 7106P056-60 | Hinge | 01 |
|
- | ||||
| 8 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 01 |
|
$ 4.29 | ||||
| 9 | 74001159 | Insulation, Back | 01 |
|
- | ||||
| 9 | 4804F036-60 | Insulation, Wrap | 01 |
|
- | ||||
| 10 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 10 | WP7101P485-60 | Screw (Replaces: 7101P344-60) | 01 |
|
$ 26.33 | ||||
| 11 | 3804F107-51 | Retainer, Insulation (side) | 01 |
|
- | ||||
| 12 | 74001337 | Shield, Vent (blk) | 01 |
|
- | ||||
| 13 | 4005F413-51 | Cover, Access | 01 |
|
- | ||||
| 14 | 4005F411-51 | Cover, Wire | 01 |
|
- | ||||
| 15 | 5140A026-60 | Wires Conduit | 01 |
|
- | ||||
| 15 | 3414F066-51 | Tubing, Conduit | 01 |
|
- | ||||
| 16 | 7417P005-60 | Connector, Conduit | 01 |
|
- | ||||
| 17 | 8008P017-60 | Grommet | 01 |
|
- | ||||
| 18 | 3605F174-51 | Plate, Conduit Tubing | 01 |
|
- | ||||
| 19 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 01 |
|
Immediately | $ 31.65 | |||
| 20 | 4011F176-51 | Bottom, Main | 01 |
|
- | ||||
| 21 | 74001325 | Cover, Wire (9`` X 9``) | 01 |
|
- |
