View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door
03 - Internal Controls
04 - Oven
05 - Top Assy.
New Model Search:

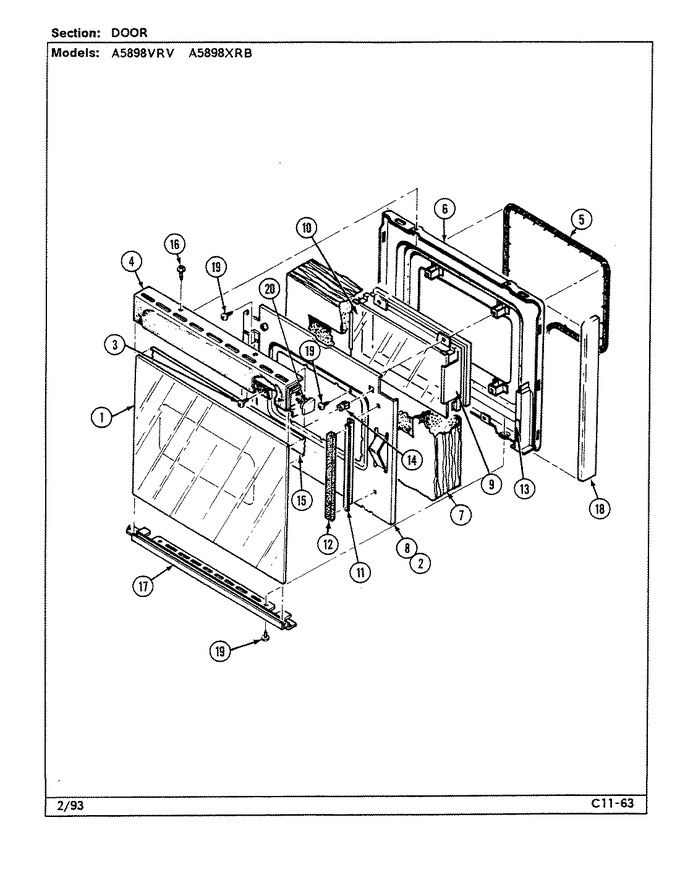

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P328-60 | Glass, Door (wht) | 01 |
|
- | ||||
| 2 | 8010P085-60 | Spacer, Rubber | 01 |
|
- | ||||
| 3 | 7101P329-60 | Screw | 01 |
|
- | ||||
| 4 | 7701P105-60 | Handle, Door (wht) | 01 |
|
- | ||||
| 5 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 01 |
|
Immediately | $ 77.61 | |||
| 6 | 2402W202-19 | Lining, Door | 01 |
|
- | ||||
| 7 | 4804F034-60 | Insulation, Door | 01 |
|
- | ||||
| 8 | 3601F232-45 | Baffle, Door | 01 |
|
- | ||||
| 9 | 7907P014-60 | Glass Asy, Oven Door | 01 |
|
- | ||||
| 9 | 7907P009-60 | Frame, Window | 01 |
|
- | ||||
| 10 | 7902P341-60 | Glass Door 16-1/2 X 8-1/4 | 01 |
|
- | ||||
| 10 | 7902P342-60 | Glass Door 16-1/2 X 8-1/4 | 01 |
|
- | ||||
| 11 | 3818F052-51 | Channel, Air | 01 |
|
- | ||||
| 12 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 13 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 14 | 8010P075-60 | Spacer | 01 |
|
- | ||||
| 15 | 8270P090-60 | Tape, Foil (3`` Wide) | 01 |
|
- | ||||
| 16 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 17 | 7744P103-60 | Trim, Bottom (wht) | 01 |
|
- | ||||
| 18 | 7744P065-60 | End Cap, Door (wht) | 01 |
|
- | ||||
| 19 | WP98008544 | Screw (wht) (Replaces: 7101P308-60) | 01 |
|
$ 11.89 | ||||
| 20 | 7744P075-60 | End Cap (rt) | 01 |
|
- | ||||
| 20 | 7744P076-60 | End Cap (lt) | 01 |
|
- |
