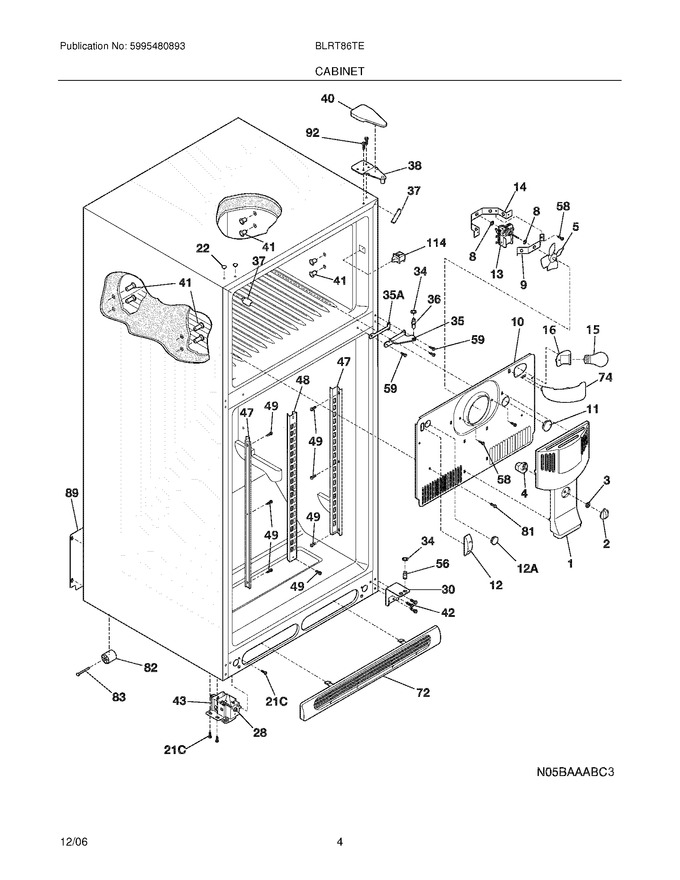

SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - Shelves


09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241652301		Cover-fan				$ 112.48
2	240367001		Knob-damper Control			Immediately	$ 57.64
3	5303001028		Nut,push-on		Appelez-nous	-
4	241523701		Damper-fan Cover				$ 19.16
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	241652213		Cover-evap Coil				$ 96.65
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	242193602		Plug-ice Maker Harness,rectangular   (Replaces: 241557601)				$ 14.41
13	5303918549		Motor-evap Fan   (Replaces: 240369702)			Immediately	$ 88.16
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	5304511738		Light Bulb   (Replaces: 241560701)			Immediately	$ 24.26
22	215774918		Plug-button, Black, Upr Hinge Holes				$ 9.86
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 241708801)			Immediately	$ 31.33
30	240314011		Bracket-lower Hinge,black   (Replaces: 240314003)			Immediately	$ 77.26
34	240311303		Washer,hinge ,nylon ,(2)			Immediately	$ 10.62
35	240313803		Bracket-ctr Hinge,black				$ 160.88
36	240516402		Pin-center Hinge		Appelez-nous	-
37	5303918607		Trim-cabinet Corner,black ,(2)   (Replaces: 241611303)				$ 7.59
38	240313703		Bracket-upper Hinge   (Replaces: 240313701)			Immediately	$ 32.27
40	240354404		Cover-upper Hinge,black				$ 61.56
41	5304500407		Grommet,shelf Mtg ,1.25`` ,lh ,(4)   (Replaces: 5308009759)			Immediately	$ 6.38
42	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,adjustable ,front ,(2)   (Replaces: 241709301)			Immediately	$ 31.33
47	218233301		Channel-shelf Mtg,side ,(2)		Appelez-nous	-
48	241566901		Channel-shelf Mtg,center (mll)				$ 28.92
49	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
56	240516502		Pin-lower Hinge				$ 72.80
58	5304456287		Screw,hex Washer Head ,8-15a X 0.500				$ 0.76
59	240442707		Screw-no.10-32 X 3/4,black			Immediately	$ 2.84
72	241839407		Grille/kickplate,black   (Replaces: 240368207)			Immediately	$ 58.82
74	240354301		Shield-light,frzr				$ 9.30
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
89	241733911		Cover-access,with Label   (Replaces: 241733907)				$ 50.51
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
114	241554901		Switch-light/lamp				$ 70.88
12A	241586701		Plug-foam-wtr-inlet,round				$ 17.72
12A	240374401		Plug-wtr Inlet Tube,round ,1``				$ 12.15
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
35A	240336803		Spacer-hinge,center ,black				$ 11.34
F16	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	241537701		Wiring Harness,freezer Section ,with Light		Appelez-nous	-
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	218931001		Clamp-motor Wiring,nylon ,w/adhesive Tape		Appelez-nous	-
NI	241500305		Screw,hex Washer Head ,8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
NI	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 66.63
NI	5303321321		Paint,touch-up,black			Immediately	$ 21.97

    View Diagram in Separate Window       Print Part List
