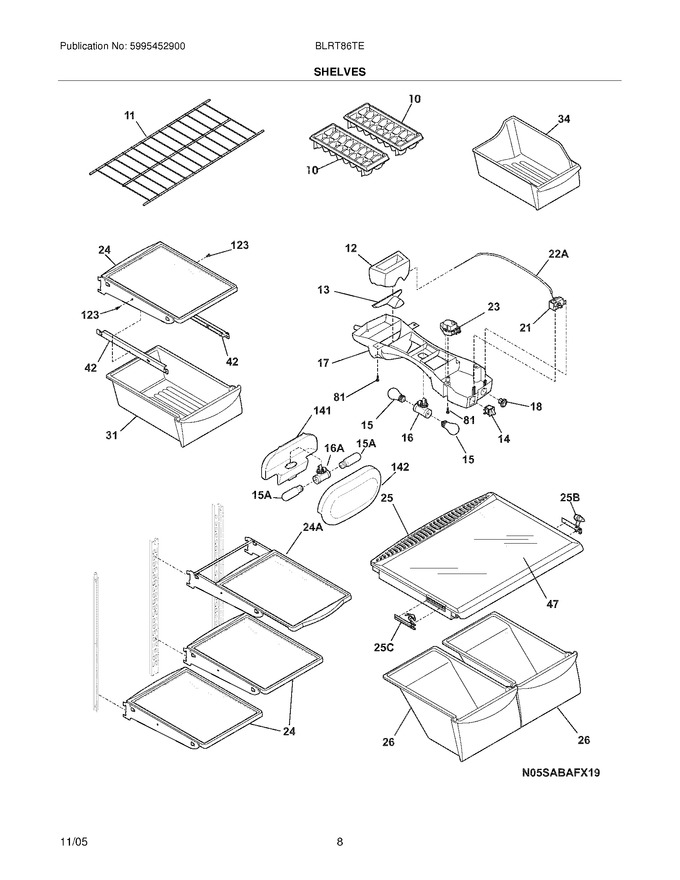

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray,ice Cube ,plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 240358005 | Shelf,freezer ,full-width ,wire |
|
- | |||||
| 12 | 240545001 | Diffuser,air ,top |
|
$ 44.61 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 240364201 | Socket-light/lamp,dual |
|
$ 100.50 | |||||
| 17 | 240352701 | Control Box |
|
- | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| 24 | 241616607 | Shelf,sliding ,cantilever ,``spill-safe`` (Replaces: 241616704) |
|
$ 146.81 | |||||
| 25 | 240364787 | Cover-crisper Pan (Replaces: 240364714) |
|
Immediately | $ 120.98 | ||||
| 26 | 240337103 | Pan-crisper,clear ,(2) ,no Graphics (Replaces: 240337107) |
|
Immediately | $ 148.35 | ||||
| 31 | 240530811 | Pan,meat Bin (Replaces: 240530810) |
|
Immediately | $ 135.77 | ||||
| 34 | 240385201 | Container,ice Bin |
|
$ 97.83 | |||||
| 42 | 240356501 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 56.70 | ||||
| 42 | 240365401 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 51.26 | ||||
| 47 | 240350608 | Insert-pan Cover,glass (Replaces: 240350650) |
|
Immediately | $ 45.50 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 0.438 (Replaces: 215005100) |
|
$ 14.89 | |||||
| 141 | 241562101 | Shield-heat,mid Level |
|
$ 66.57 | |||||
| 142 | 241562201 | Shield-light Mid Level |
|
$ 47.99 | |||||
| 15A | 241552802 | Light Bulb |
|
Immediately | $ 50.45 | ||||
| 16A | 241622802 | Socket-light (Replaces: 241507803) |
|
$ 65.93 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 9.10 | |||||
| 24A | 241616607 | Shelf,fixed ,spill Safe (Replaces: 241616604) |
|
$ 146.81 | |||||
| 25B | 241613501 | Control-humidity,rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity,lh |
|
$ 47.78 | |||||
| F16A | 241593901 | Harness-wiring |
|
$ 54.29 | |||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 28.20 | ||||
| NI | 240371304 | Seal,foam ,air Diffuser |
|
$ 13.65 | |||||
| NI | 241566801 | Harness-wiring,c/box M/level |
|
$ 59.96 | |||||
| NI | 5304455649 | Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2) (Replaces: 5303001259) |
|
$ 17.01 |
