SELECT A DIAGRAM

01 - Cover

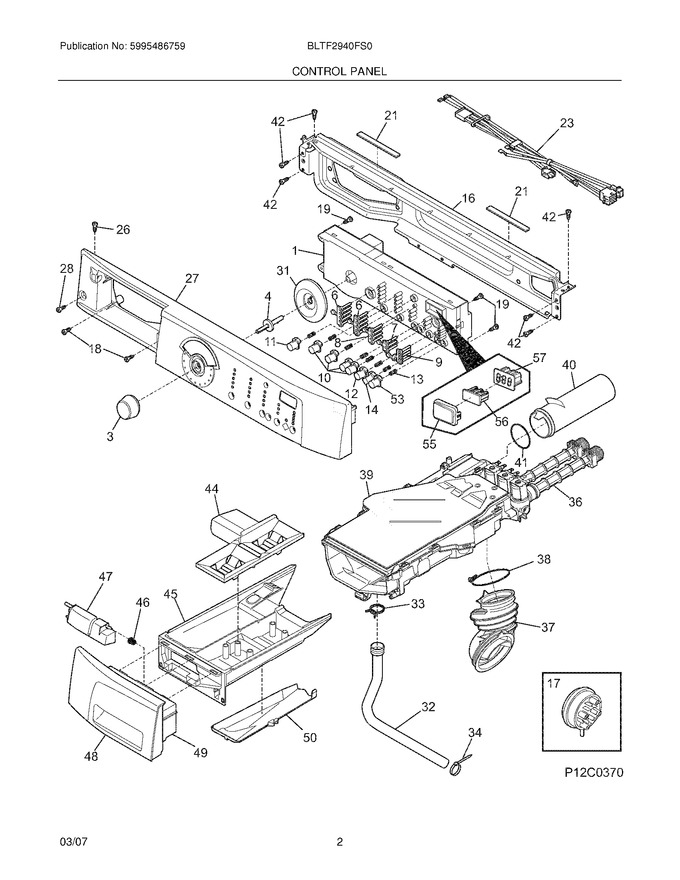

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	134471500		Knob,program				$ 58.38
4	134347700		Pin,program Knob				$ 19.74
6	134429100		Light Pipe,array ,1 Row Of 5				$ 130.57
7	134429300		Light Pipe,array ,3 Row Of 3				$ 11.34
8	134429200		Light Pipe,array ,2 Row Of 4				$ 12.97
9	134429400		Light Pipe,array ,4 Start Group				$ 13.39
10	134447160		Push Button,no.1		Appelez-nous	-
11	134447560		Push Button,no.5		Appelez-nous	-
12	134447460		Push Button,no.4		Appelez-nous	-
13	134349400		Spring,push Button				$ 9.14
14	134447201		Push Button,no.2				$ 12.58
16	134364800		Bracket,top Front				$ 70.98
18	131302800		Screw,10-16ab X 0.375			Immediately	$ 26.58
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
21	134407900		Dampener,vibration				$ 17.01
26	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
27	134543600		Panel,control Console				$ 165.61
28	131205300		Screw,10-16 X 0.750			Immediately	$ 12.10
31	134761400		Bezel,knob Flange		Appelez-nous	-
32	134586500		Hose,disp-to-bellows				$ 52.24
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie,5.60 Inch   (Replaces: 5303321209)				$ 10.63
37	134372300		Hose,disp-to-tub				$ 58.32
38	134372400		Clamp,tub Hose				$ 64.49
39	134409320		Housing,dispenser ,w/valve,cover   (Replaces: 134446120)			Immediately	$ 366.58
40	134372100		Tube,disp-to-overflo				$ 50.87
41	134372200		O-ring,overflow Tube				$ 13.74
42	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
44	134370200		Cover,dispenser			Immediately	$ 41.11
45	134370000		Drawer,dispenser			Immediately	$ 74.11
46	134349500		Spring,door Latch				$ 7.71
47	134386560		Latch,dispenser ,black ,lock				$ 43.89
48	134798060		Handle,dispenser ,front		Appelez-nous	-
49	134386260		Frame,drawer Handle ,black				$ 50.19
50	134409320		Conveyor,dispenser ,lower   (Replaces: 134370100)			Immediately	$ 366.58
53	134447301		Push Button,no.3				$ 35.70
55	134428900		Lens,digital Display				$ 60.59
56	134503400		Light Pipe,digital Display		Appelez-nous	-
F1	137006000		Control Board,pc ,with Housing   (Replaces: 134855503)				$ 296.40
F17	134762000		Switch,pressure ,analog   (Replaces: 134407800)			Immediately	$ 111.28
F23	134436600		Wiring Harness,controls				$ 212.63
F36	134371220		Valve,dispenser ,ntc/short Tube			Immediately	$ 65.71
F57	134503300		Display,digital				$ 52.24
NI	134743400		Wiring Harness,main		Appelez-nous	-
NI	134371300		Gasket,disp-to-valve			Immediately	$ 51.04
NI	134178901		Screw,quadrex Ph ,8-18ab X 0.500   (Replaces: 131311900)				$ 14.89

    View Diagram in Separate Window       Print Part List
