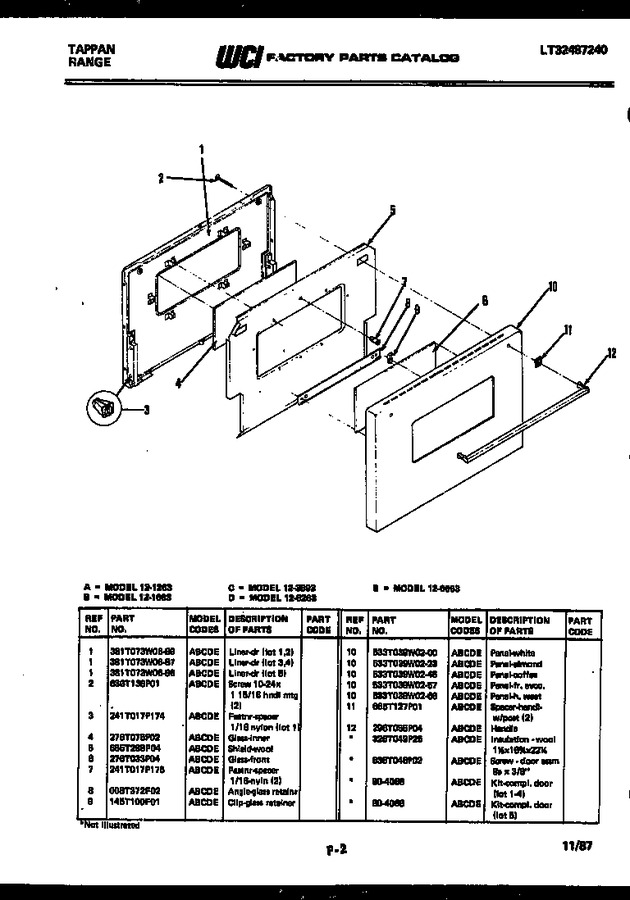

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 381T073W06-89 | Liner-dr (lot 1, 2) |
|
- | |||||
| 1 | 381T073W06-87 | Liner-dr (lot 3, 4) |
|
- | |||||
| 1 | 381T073W06-86 | Liner-dr (lot 5) |
|
- | |||||
| 2 | 636T138P01 | Screw 10-24 X 1 15/16 Hndl Mtg (2) |
|
- | |||||
| 3 | 241T017P174 | Fastnr-spacer 1/16 Nylon (lot 1) |
|
- | |||||
| 4 | 276T075P02 | Glass-inner |
|
- | |||||
| 5 | 655T288F04 | Shield-wool |
|
- | |||||
| 6 | 276T033P04 | Glass-front |
|
- | |||||
| 7 | 241T017P175 | Fastnr-spacer 1/16-nyln (2) |
|
- | |||||
| 8 | 008T372F02 | Angle-glass Retainer |
|
- | |||||
| 9 | 145T100F01 | Clip-glass Retainer |
|
- | |||||
| 10 | 533T039W02-66 | Panel-h. Weat |
|
- | |||||
| 11 | 665T127P01 | Spacer-handl-w/post (2) |
|
- | |||||
| 12 | 296T055P04 | Handle |
|
- | |||||
| *86012 | 328T049P25 | Insulation-wool 1 1/2 X 16 3/4 X 22 1/4 |
|
- | |||||
| *86013 | 636T046P02 | Screw - Door Assm 8a X 3/8`` |
|
- | |||||
| *86014 | 80-4066 | Kit-compl. Door (lot 5) |
|
- | |||||
| *86014 | 80-4065 | Kit-compl. Door (lot 1-4) |
|
- |
