SELECT A DIAGRAM
01 - Body
02 - Control System
03 - Door/drawer

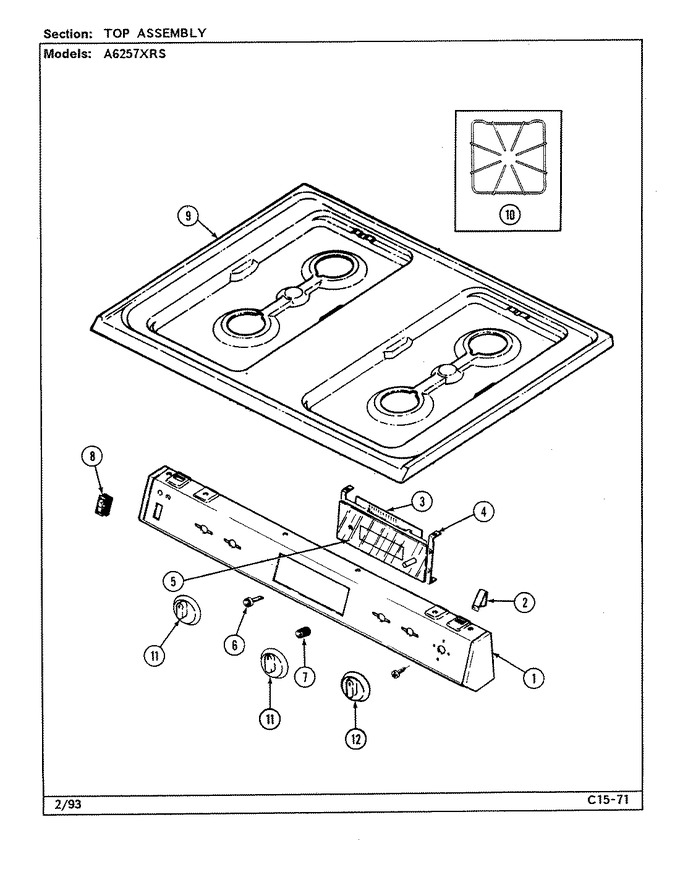

04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7712P158-60 | Panel, Manifold | 1 |
|
- | ||||
| 2 | 3801F318-51 | Bracket, Top | 1 |
|
- | ||||
| 3 | 7602P105-60 | Clock | 1 |
|
- | ||||
| 4 | 3801F233-45 | Bracket Mw Mtg Top | 1 |
|
- | ||||
| 4 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 1 |
|
Immediately | $ 12.62 | |||
| 5 | 7902P374-60 | Glass, Clock | 1 |
|
- | ||||
| 6 | 7711P422-60 | Knob, Clock | 1 |
|
- | ||||
| 7 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 8 | 7403P067-60 | Switch, Rocker (blk) | 1 |
|
$ 91.35 | ||||
| 8 | 4005F378-51 | Cover, Main Wire | 1 |
|
- | ||||
| 9 | 3601F221-45 | Baffle, Vent Cover | 1 |
|
$ 28.30 | ||||
| 9 | 2001F089-30 | Top, Main (stls) | 1 |
|
- | ||||
| 9 | 7724P051-60 | Cover, Vent Trim | 1 |
|
- | ||||
| 10 | 2003W023-00 | Grate (blk) | 1 |
|
- | ||||
| 11 | 7733P065-60 | Knob, Valve | 1 |
|
- | ||||
| 12 | 8112P106-60 | Manual, Use & Care-insert | 1 |
|
- | ||||
| 12 | 8113P012-60 | Manual, Use & Care | 1 |
|
- | ||||
| 12 | 7731P071-60 | Knob, Thermostat (blk) | 1 |
|
$ 39.24 |
