SELECT A DIAGRAM

01 - Cover


03 - Doors


05 - Cabinet

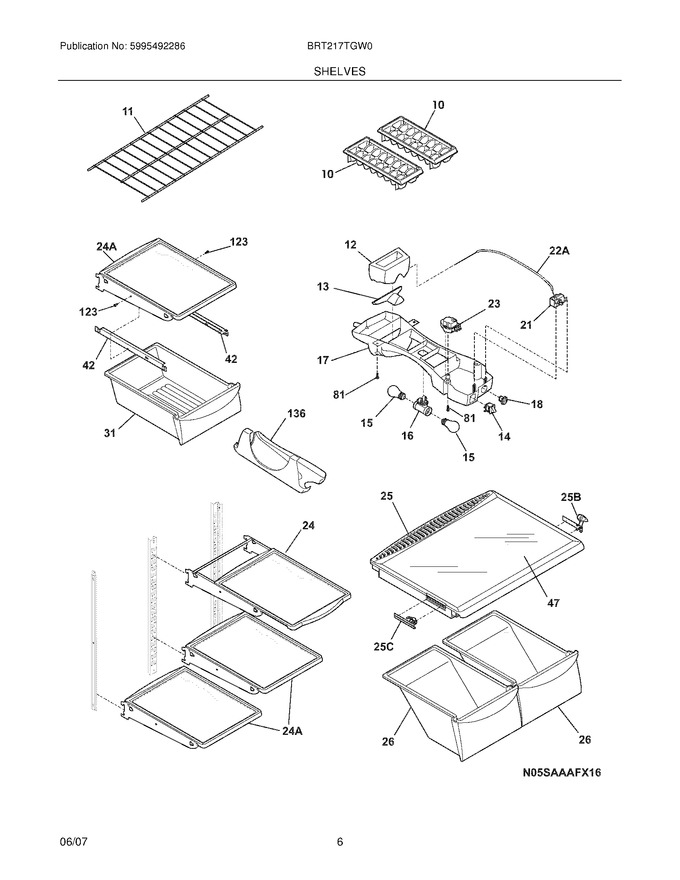

07 - Shelves


09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358006		Shelf,freezer ,full-width ,wire				$ 45.41
12	240545901		Diffuser-air,top				$ 70.16
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	240364201		Socket-light/lamp,dual				$ 100.50
17	240368105		Control Box   (Replaces: 240368101)			Immediately	$ 130.44
18	240360801		Knob-temp Control				$ 43.95
24	240350105		Shelf-``spill-safe``,cantilever ,sliding		Appelez-nous	-
25	240364777		Cover-crisper Pan		Appelez-nous	-
26	240343805		Pan-crisper,water Blue ,(2)		Appelez-nous	-
31	240530816		Pan-meat,blue Tint		Appelez-nous	-
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 51.26
47	240350609		Insert-pan Cover,glass			Immediately	$ 162.30
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
136	241657701		Dispenser-can,white				$ 57.41
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
24A	240355206		Shelf,cantilever ,half Width ,fixed ,``spill Safe``				$ 239.45
25B	241613501		Control-humidity,rh			Immediately	$ 12.05
25C	241613502		Control-humidity,lh				$ 47.78
F21	241537103		Control-temperature   (Replaces: 5304445058)			Immediately	$ 72.31
F23	215846602		Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
NI	241615438		Energy Guide		Appelez-nous	-
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	5304455649		Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2)				$ 17.01

    View Diagram in Separate Window       Print Part List
