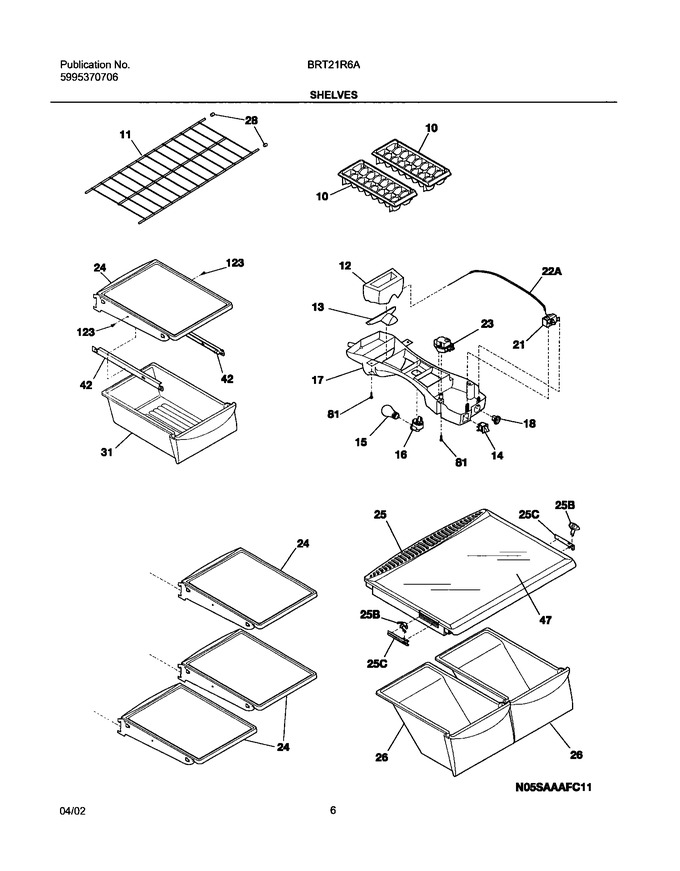

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358003		Shelf,freezer ,full-width ,wire		Appelez-nous	-
12	240545901		Diffuser-air,top   (Replaces: 240380202)				$ 70.16
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
15	316538904		Light Bulb/lamp,a-15 ,40 W ,120 V ,miniature   (Replaces: 240436701)			Immediately	$ 20.48
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 72.68
17	240368105		Control Box   (Replaces: 240368101)			Immediately	$ 130.44
18	240360801		Knob-temp Control				$ 43.95
24	240355214		Shelf-``spill-safe``,fixed				$ 278.09
25	240364718		Cover-crisper Pan				$ 164.62
26	240343803		Pan-crisper,(2)			Immediately	$ 171.91
28	3201150		End Cap,freezer Shelf ,protector				$ 4.57
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530903)			Immediately	$ 135.77
42	240365401		Hanger-meat Pan,lh			Immediately	$ 51.26
42	240356501		Hanger-meat Pan,rh			Immediately	$ 56.70
47	240350609		Insert-pan Cover,glass   (Replaces: 240350654)			Immediately	$ 162.30
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
25B	5304492617		Control-humidity   (Replaces: 240361201)			Immediately	$ 8.69
25C	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
F14	240505801		Switch-light/lamp				$ 66.63
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846602		Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	5303299664		Spacer-shelf				$ 24.10
