01 - Body
02 - Door/drawer
03 - Internal Controls
04 - Oven
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

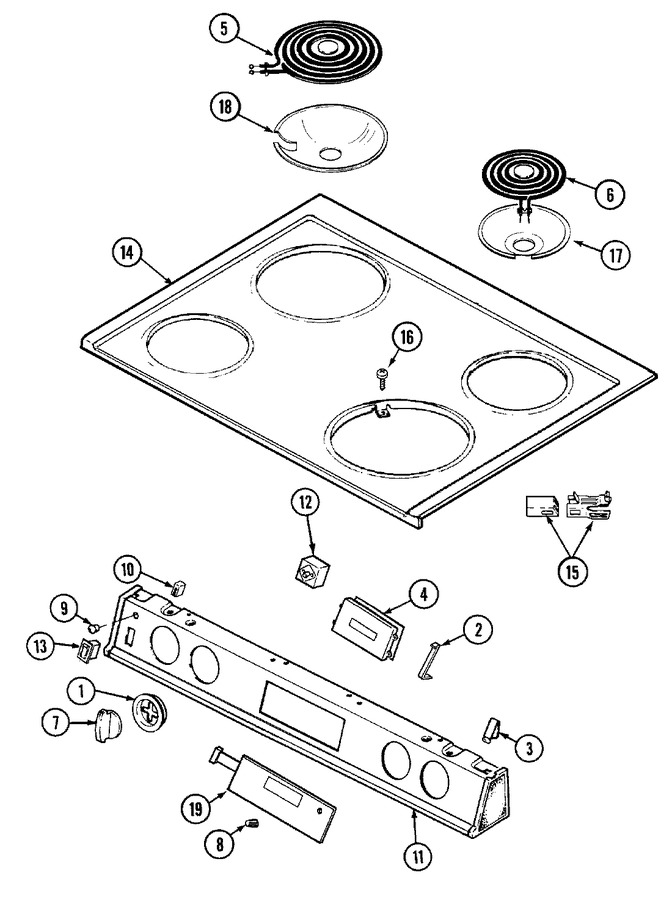

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7740P020-60 | Bezel, Knob (blk) | 02 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 02 |
|
$ 6.98 | ||||
| 2 | 3801F222-45 | Bracket, Clock | 02 |
|
- | ||||
| 3 | 7112P087-60 | Clip, Top Locking | 02 |
|
- | ||||
| 4 | 7601P207-60 | Clock | 02 |
|
- | ||||
| 5 | WP3191454 | Element (8``) (Replaces: 7406P039-60) | 02 |
|
$ 163.63 | ||||
| 6 | WP660532 | Element (6``) (Replaces: 7406P037-60) | 02 |
|
Immediately | $ 36.90 | |||
| 7 | 7731P082-60 | Knob, Therm/burner (blk) | 02 |
|
- | ||||
| 8 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 02 |
|
$ 12.13 | ||||
| 9 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 02 |
|
$ 6.73 | ||||
| 9 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 05 |
|
$ 6.73 | ||||
| 10 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 05 |
|
$ 106.11 | ||||
| 10 | 7407P081-60 | Light, Indicator | 02 |
|
- | ||||
| 11 | 7722P118-60 | Trim, Upper Front | 02 |
|
- | ||||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 02 |
|
Immediately | $ 6.26 | |||
| 12 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 02 |
|
Immediately | $ 57.78 | |||
| 12 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 02 |
|
Immediately | $ 35.10 | |||
| 13 | 7403P067-60 | Switch, Rocker (blk) | 02 |
|
$ 91.35 | ||||
| 14 | 2002W084-30 | Top, Main (stain) | 02 |
|
- | ||||
| 14 | 7706P301-60 | Extrusion, Filler | 02 |
|
- | ||||
| 15 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 02 |
|
Immediately | $ 28.45 | |||
| 16 | WP74004005 | Screw (Replaces: 7118P013-60) | 02 |
|
$ 6.95 | ||||
| 17 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P008-60) | 02 |
|
Immediately | $ 12.05 | |||
| 18 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P009-60) | 02 |
|
Immediately | $ 15.56 | |||
| 19 | 7403P332-60 | Switch, Membrane | 02 |
|
- | ||||
| NI | 5170P138-60 | Harness, Sensor/lock | 02 |
|
- | ||||
| NI | 8113P026-60 | Insert, Instr Sheet (clock) | 02 |
|
- | ||||
| NI | 5170P147-60 | Harness, Control To Relay | 02 |
|
- | ||||
| NI | 8113P007-60 | Manual, Use & Care | 02 |
|
- | ||||
| NI | 5195D103-60 | Harness | 02 |
|
- | ||||
| NI | 16002079 | Guide, Quick Ref - Admiral | 02 |
|
- |
