View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body

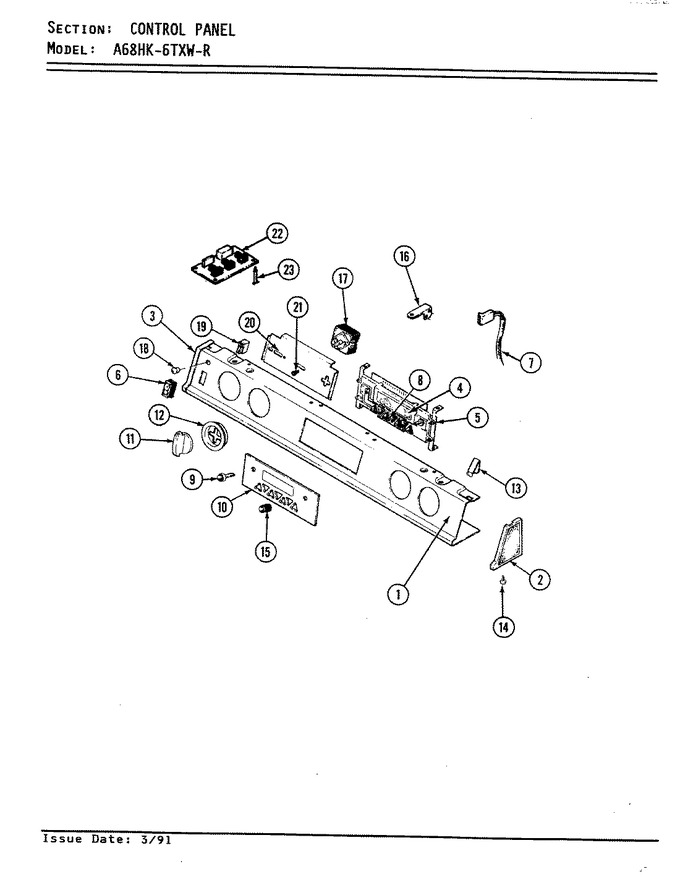

02 - Control Panel
03 - Door/drawer
04 - Internal Controls
05 - Oven
06 - Top Assy.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 1 |
|
Immediately | $ 4.86 | |||
| 1 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 1 |
|
Immediately | $ 9.95 | |||
| 1 | 5425A025-90 | Main Top Assy | 1 |
|
- | ||||
| 2 | 3801F228-45 | Bracket | 1 |
|
- | ||||
| 3 | W10823704 | Element, Std (Replaces: 7406P058-60) | 1 |
|
Immediately | $ 309.01 | |||
| 4 | W10823707 | Element, Giant (Replaces: 7406P057-60) | 1 |
|
Immediately | $ 316.13 | |||
| 5 | 8004P015-60 | Support, Element | 1 |
|
- | ||||
| 6 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 7 | 3807F390-45 | Support, Element | 1 |
|
- | ||||
| 8 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 9 | 7407P074-60 | Light, Indicator (hot Surface) | 1 |
|
- | ||||
| 9 | 7103P090-60 | Nut Snap | 1 |
|
- | ||||
| 9 | 7101P287-60 | Screw, Metal Grounding | 1 |
|
$ 12.03 |
