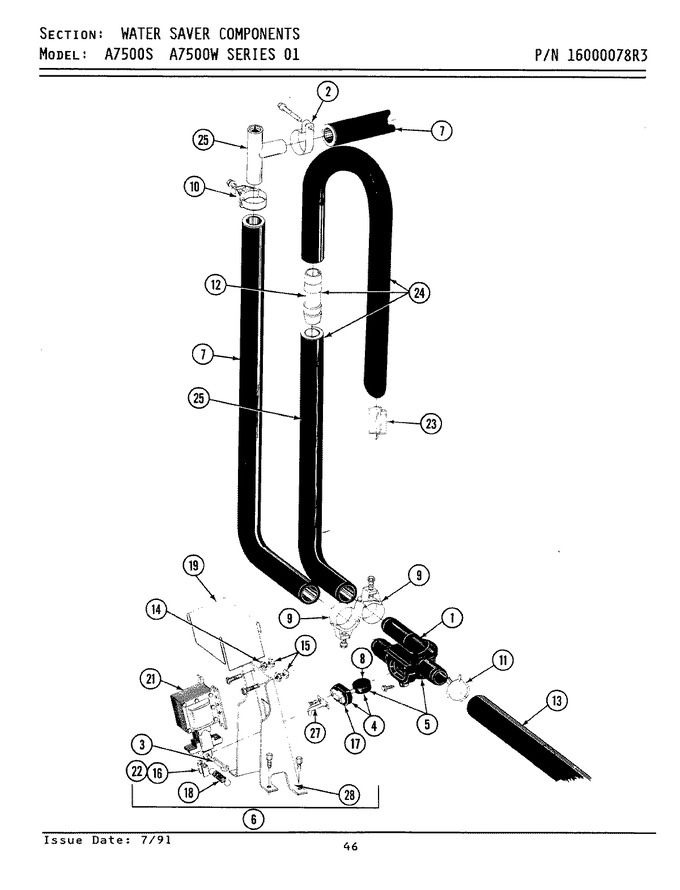

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	Y310842	Screw	A1	Appelez-nous	-
1	204313	Body For Diverter Valve	A1			$ 77.49
2	211448	Clamp	A1	Appelez-nous	-
3	052366	Cotter Key, 1/8 X 7/8	A1	Appelez-nous	-
4	204316	Diaphragm And Arm	A1			$ 29.15
5	WP90767	Screw (Replaces: 214332)	A1		Immediately	$ 7.04
5	202504	Diverter Value Cover/flapper	A1			$ 91.38
6	201197	Diverter Valve (Replaces: 201168)	A1			$ 33.29
7	211704	Drain Hose	A1			$ 78.91
8	211083	Flapper	A1			$ 5.70
9	WP285655	Hose Clamp - 1-5/8 Inch (Replaces: 200461)	A1		Immediately	$ 7.55
10	WP285655	Hose Clamp - 1-1/2 Inch (Replaces: 200908)	A1		Immediately	$ 7.55
11	WP3367052	Clamp, Hose (Replaces: 202574)	A1			$ 7.49
12	WP16272	Hose Coupling (Replaces: 211111)	A1			$ 7.04
13	211518	Hose	A1	Appelez-nous	-
14	052690	Hex. Nut, No.10-32	A1	Appelez-nous	-
15	WP3400029	Nut, Washered Lock (Replaces: Y311426)	A1		Immediately	$ 6.98
16	213855	Pin, Pivot	A1	Appelez-nous	-
17	213856	Retainer	A1	Appelez-nous	-
18	211085	Return Spring	A1			$ 5.84
19	211388	Shield	A1	Appelez-nous	-
21	W11573362	Screw, No.10-32 X 7/8----na (Replaces: Y054810)	A1			$ 12.62
21	200806	Solenoid	A1	Appelez-nous	-
22	211087	Solenoid Link	A1	Appelez-nous	-
23	212056	Strainer	A1	Appelez-nous	-
24	200736	Suds Return Hose	A1	Appelez-nous	-
25	211171	Suds Return Hose-lower	A1	Appelez-nous	-
27	911266	Screw, Strainer To Pump	A1	Appelez-nous	-
27	200828	Valve Arm Assembly	A1	Appelez-nous	-
28	WP489128	Slotted Hex Head Screw (Replaces: 910091)	A1			$ 9.79
28	211516	Valve Bracket	A1			$ 232.31
NI	76660	Siphon Break Kit (Replaces: 201112)	A1		Immediately	$ 119.93
NI	211170	Suds Hose, Upper	A1	Appelez-nous	-
