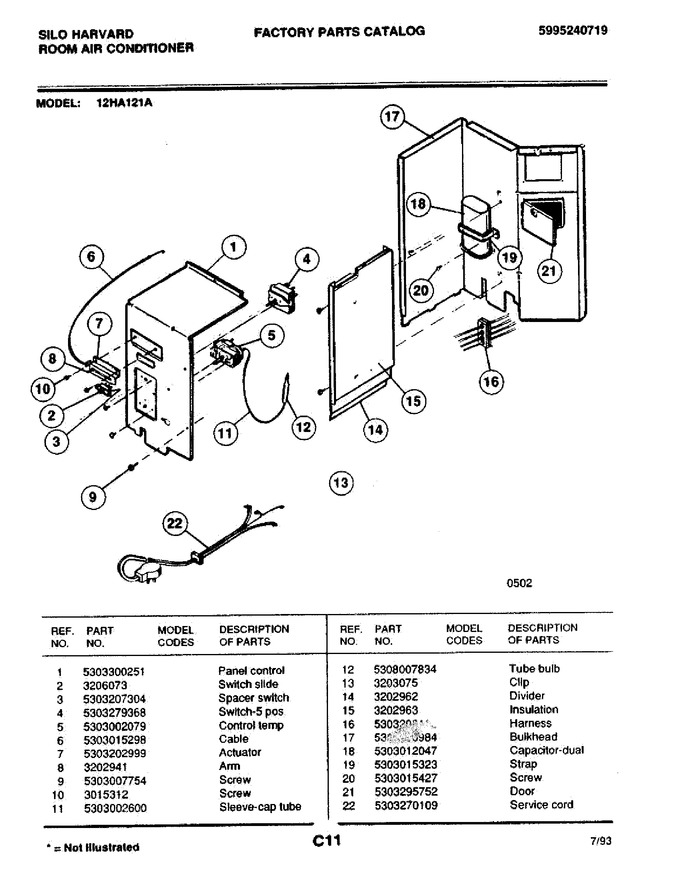

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300251		Panel-control		Appelez-nous	-
2	3206073		Switch		Appelez-nous	-
3	5303207304		Spacer - Switch		Appelez-nous	-
4	5303279368		Switch Selector		Appelez-nous	-
5	5303002079		Control Temp		Appelez-nous	-
6	5303015298		Cable		Appelez-nous	-
7	5303202999		Actuator		Appelez-nous	-
8	3202941		Arm		Appelez-nous	-
9	5303007754		Screw		Appelez-nous	-
10	3015312		Screw-actuator		Appelez-nous	-
11	5303002600		Sleeve - Cap Tube		Appelez-nous	-
12	5308007834		Tube Control Bulb		Appelez-nous	-
13	3203075		Clip		Appelez-nous	-
14	3202962		Divider		Appelez-nous	-
15	3202963		Insulation		Appelez-nous	-
16	5303203112		Harness		Appelez-nous	-
17	5303210984		Bulkhead - Control		Appelez-nous	-
18	5303012047		Capacitor-dual		Appelez-nous	-
19	5303015323		Strap		Appelez-nous	-
20	5303015427		Screw		Appelez-nous	-
21	5303295752		Door		Appelez-nous	-
22	5303270109		Cord-service		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
