SELECT A DIAGRAM

01 - Cover


03 - Door

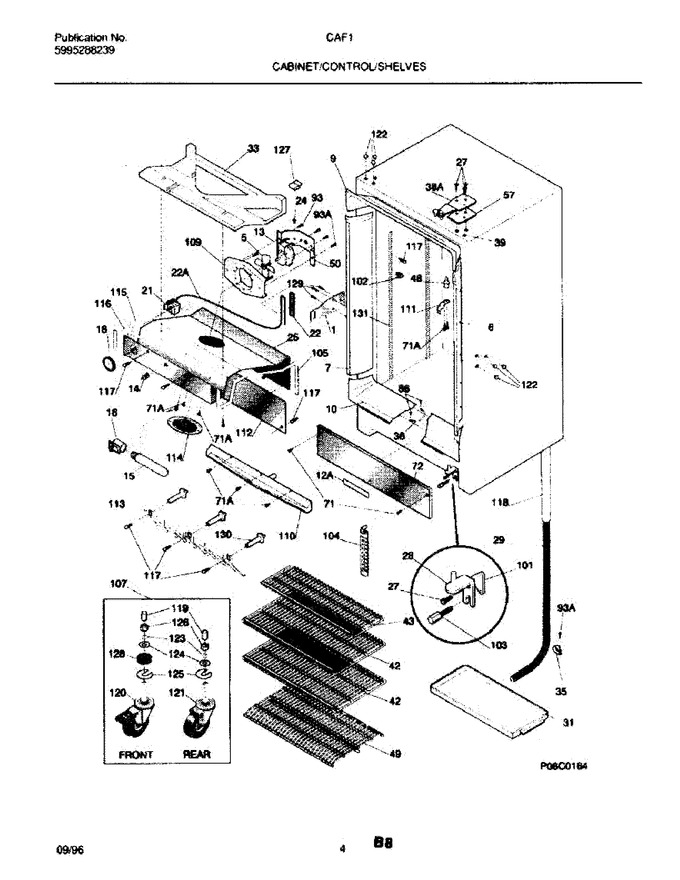

05 - Cabinet/control/shelves


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216324200		Lock-catch		Appelez-nous	-
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216107500		Breaker, Hinge Side		Appelez-nous	-
7	216107600		Breaker, Lock Side		Appelez-nous	-
9	216085900		Breaker, Top		Appelez-nous	-
10	216469311		Breaker, Bottom   (Replaces: 216085600)				$ 187.21
13	216470200		Motor-evap Fan		Appelez-nous	-
14	216361000		Switch-light/lamp		Appelez-nous	-
15	216360900		Bulb-light, 40w, 130v		Appelez-nous	-
16	5300136117		Socket, Light/lamp				$ 52.46
18	216424800		Knob-control		Appelez-nous	-
21	216360800		Control-temperature		Appelez-nous	-
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216375601		Cover-evaporator		Appelez-nous	-
27	216395900		Screw-hinge/closer		Appelez-nous	-
28	216335600		Hinge-bottom, Stepped Pin				$ 129.83
29	216361900		Hose-drain		Appelez-nous	-
31	5308016387		Pan, Drain		Appelez-nous	-
33	216376900		Air Duct		Appelez-nous	-
35	216396000		Clip-drain Hose		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
42	216384000		Shelf-full Frame, Wire		Appelez-nous	-
43	216386200		Shelf-partial, Wire		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
49	216331800		Trivet		Appelez-nous	-
50	08013207		Bracket Fan Motor				$ 12.92
57	216335500		Spacer-hinge, Top		Appelez-nous	-
71	216395800		Screw-grille/kickplate				$ 4.52
72	216330500		Grille/kickplate		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
101	216335700		Plate-hinge, Tapping		Appelez-nous	-
102	216359600		Support Shelf, Adjustable		Appelez-nous	-
103	216336300		Standoff-base Panel				$ 71.51
104	216360600		Thermometer		Appelez-nous	-
105	216361100		Gasket-cover Evap, Rh		Appelez-nous	-
107	216460700		Roller Set		Appelez-nous	-
109	216375700		Blower-fan		Appelez-nous	-
110	216377000		Pan-drain, Condensate				$ 222.14
111	216377100		Bracket-evap Cover		Appelez-nous	-
112	216381300		Cover-drain,condensate				$ 134.09
113	216383600		Grate-air Intake		Appelez-nous	-
114	216382600		Cover-blower		Appelez-nous	-
115	216383700		Gasket-evap Cover, Lh		Appelez-nous	-
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
117	216361600		Thumbscrew		Appelez-nous	-
118	09948773		Insulation, Drain Tube				$ 12.60
119	216429700		Cap-caster Stem		Appelez-nous	-
120	216460600		Roller-front, Jarvis Brake		Appelez-nous	-
121	216460500		Roller-rear		Appelez-nous	-
122	215134501		Plug-button, White		Appelez-nous	-
123	216430300		Lockwasher		Appelez-nous	-
124	216430200		Washer-flat		Appelez-nous	-
125	216430000		C-washer		Appelez-nous	-
126	216430100		Nut-caster		Appelez-nous	-
127	5303311565		Clip-cable				$ 2.10
128	216393600		Spacer-caster, Front		Appelez-nous	-
129	216393300		Screw-lock Catch, One Way		Appelez-nous	-
130	06599544		Support, Evaporator		Appelez-nous	-
131	216305300		Shelf-standard		Appelez-nous	-
	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
	06594680		Clip, Breaker		Appelez-nous	-
12A	216477000		Nameplate		Appelez-nous	-
22A	5303916855		Sleeve-insulator, Plastic Tubing, Temp Sensor				$ 60.96
38A	216365200		Door Closer		Appelez-nous	-
71A	216409500		Screw		Appelez-nous	-
93A	5303302760		Screw				$ 8.72

    View Diagram in Separate Window       Print Part List
