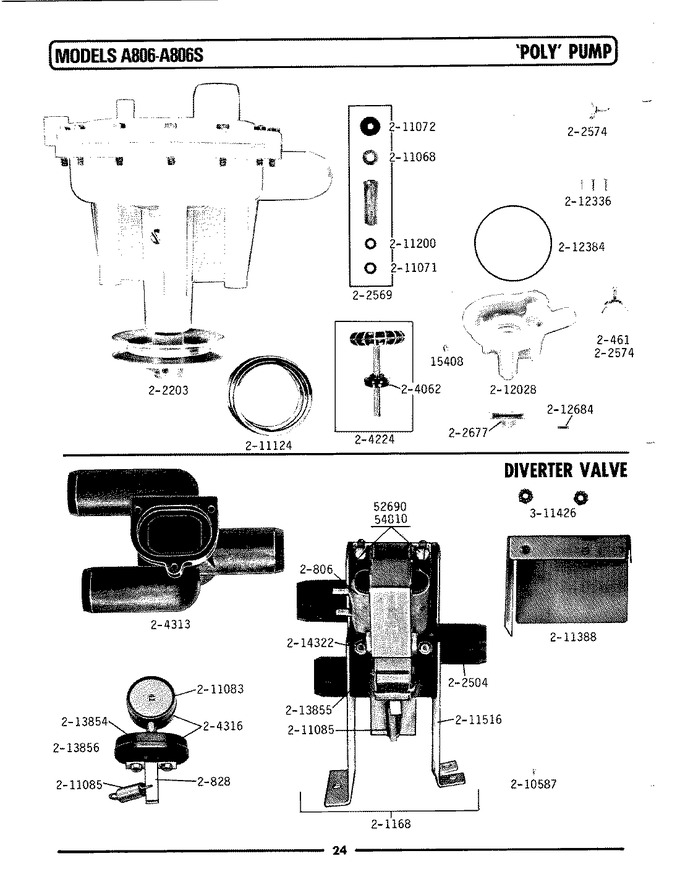

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		Screw, Bearing Insert   (Replaces: Y015408)	00			$ 7.04
3	202203		Pump As Pak	00	Appelez-nous	-
4	202569		Pump Bearing Kit	00	Appelez-nous	-
5	WP3367052		Clamp, Hose   (Replaces: 202574)	00			$ 7.49
6	202677		Pump Pulley With Pin	00	Appelez-nous	-
7	204449CP		Seal For Impeller   (Replaces: 204062)	00	Appelez-nous	-
8	204224		Impeller & Seal Assembly	00	Appelez-nous	-
9	211068		Wicking-top	00	Appelez-nous	-
10	211071		Oil Slinger-bottom	00	Appelez-nous	-
11	211072		Oil & Water Slinger-top	00	Appelez-nous	-
12	12112425		V Belt, Pump   (Replaces: 211124)	00		Immediately	$ 45.06
13	211200		Washer	00	Appelez-nous	-
14	212028		Pump Housing, Poly	00	Appelez-nous	-
15	212336		Screw, No.8 X 3/4 Inch	00			$ 61.65
16	212384		Gasket For Poly Pump	00	Appelez-nous	-
17	212684		Rollpin For Pump Pulley	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
