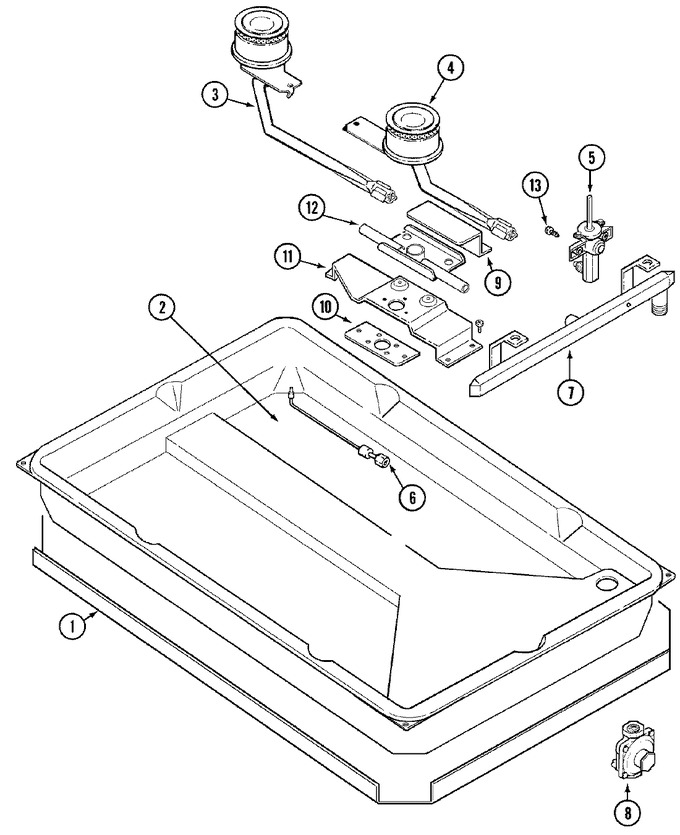

01 - Body (a8210pa-l/pw-l)
02 - Top Assembly (a8210pa-l/pw-l)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F185-51 | Baffle, Bottom | 01 |
|
- | ||||
| 2 | 4011F140-19 | Bottom Burner Box | 01 |
|
- | ||||
| 3 | 7505P160-60 | Burner, Top Left | 01 |
|
- | ||||
| 3 | 74001359 | Burner Assy. (lt) | 11 |
|
- | ||||
| 4 | 7505P161-60 | Burner, Top Right | 01 |
|
- | ||||
| 4 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 4 | 74001358 | Burner Assy. (rt) | 11 |
|
- | ||||
| 5 | 7502P216-60 | Valve, Top Burner | 11 |
|
- | ||||
| 5 | 7502P120-60 | Valve | 01 |
|
- | ||||
| 5 | 7724P004-60 | Cover, Burner Valve | 01 |
|
- | ||||
| 6 | 7505P159-60 | Burner, Pilot 18-3/4 | 01 |
|
- | ||||
| 6 | 74001360 | Burner, Pilot | 11 |
|
- | ||||
| 6 | 7507P001-60 | Filter, Pilot | 01 |
|
- | ||||
| 7 | 74001362 | Pipe, Manifold | 11 |
|
- | ||||
| 7 | 7513P059-60 | Pipe, Manifold | 01 |
|
- | ||||
| 8 | 7510P001-60 | Regulator, Pressure | 01 |
|
- | ||||
| 9 | 3604F065-45 | Support, Pilot | 01 |
|
- | ||||
| 10 | 3807F334-35 | Support, Pilot | 01 |
|
- | ||||
| 11 | 3807F101-51 | Support | 01 |
|
- | ||||
| 12 | 7506P012-60 | Tube, Flash | 01 |
|
- | ||||
| 13 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 13 | 7101P044-60 | Screw, Valve | 11 |
|
- |
