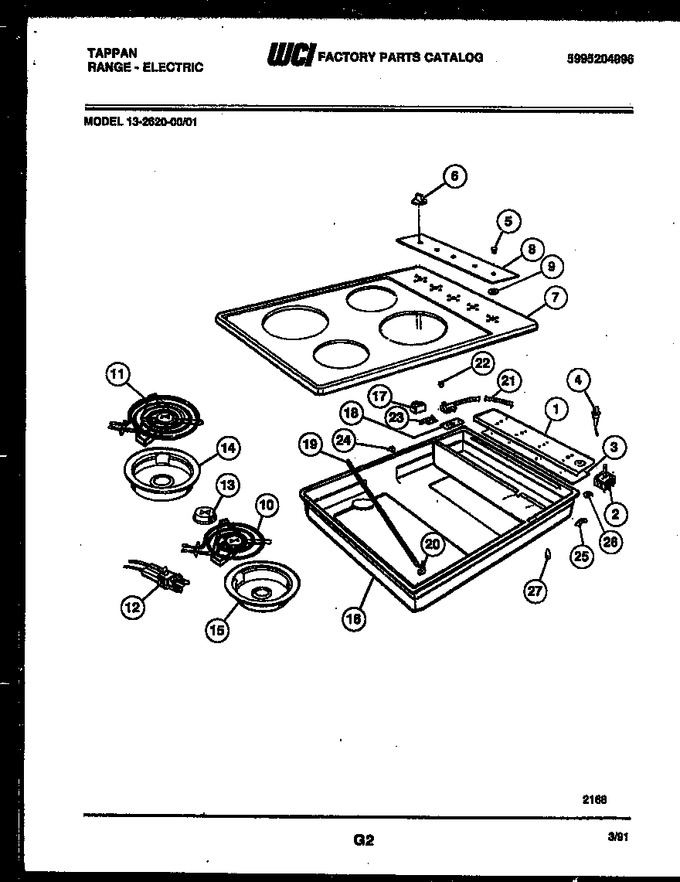

02 - Electric Smooth Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 554T166F02 | Plate-instrument Mtg |
|
- | |||||
| 2 | 3204918 | Switch-top Unit-small (3) |
|
- | |||||
| 3 | 5303270887 | Seal-switch-plastic |
|
- | |||||
| 4 | 3051601 | Light-ind-250v |
|
- | |||||
| 5 | 3016821 | Lens-surface |
|
- | |||||
| 6 | 3051596 | Knob-control |
|
- | |||||
| 7 | 529T077W19-00 | Panel-main Top White |
|
- | |||||
| 8 | 5303272286 | Control Panel |
|
- | |||||
| 9 | 5303272289 | Seal |
|
- | |||||
| 10 | 318372210 | Element-small (3) (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 11 | 316442300 | Element-large (1) (Replaces: 5303015715) |
|
Immediately | $ 59.16 | ||||
| 12 | 5303935058 | Terminal Block (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 13 | 3017801 | Medallion (4) |
|
- | |||||
| 14 | 316048413 | Pan-element Large (1) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 15 | 5303013589 | Pan-element Small (3) |
|
- | |||||
| 16 | 095T002W05-18 | Burner Box |
|
- | |||||
| 17 | 5301506869 | Connector-conduit |
|
- | |||||
| 18 | 554T356F01 | Plate-grounding |
|
- | |||||
| 19 | 618T028P01 | Rod-top Retainer |
|
- | |||||
| 20 | 3016999 | Fastener, Rod Mtg. |
|
- | |||||
| 21 | 5303207823 | Conduit-cable |
|
- | |||||
| 22 | 5308012121 | Insulator-bushing |
|
- | |||||
| 23 | 302T025P01 | Hinge Top Mtg (2) |
|
- | |||||
| 24 | 08067733 | Fastener-cable Clamp |
|
- | |||||
| 25 | 241T017P186 | Fastener-light Retainer |
|
- | |||||
| 26 | 614T024P01 | Seal-indicator Light |
|
- | |||||
| 27 | 711T047P93 | Terminal-c8(2) |
|
- | |||||
| *46753 | 636T097P08 | Screw-10-24 X 3/8 Ph Tr Hd-plate Mtg |
|
- | |||||
| *46753 | 636T096P01 | Screw-8-32 X 1/4 Ph Bd Hd-terminal Block Mtg |
|
- | |||||
| *46753 | 636T096P23 | Screw-8-32 X 3/16 Ph Tr Hd-switch Mtg |
|
- | |||||
| *46753 | 5303272288 | Harness-surface Units |
|
- | |||||
| *46753 | 5303272287 | Harness-main |
|
- | |||||
| *46754 | 19100290001 | Wiring Diagram (not For Purchase) |
|
- | |||||
| *46754 | 636T089P22 | Screw-6a X 1/2 Ph Fl Hd-hinge Mtg |
|
- | |||||
| *46754 | 154079601 | Hex Nut-10-24-plate Mtg (Replaces: 5303013272) |
|
$ 0.41 | |||||
| *46754 | 5303013874 | Screw-8ax3/8 Ph Tr Hd-main Top Mtg |
|
$ 5.04 | |||||
| 2A | 3204919 | Switch-top Unit-large (1) |
|
- |
