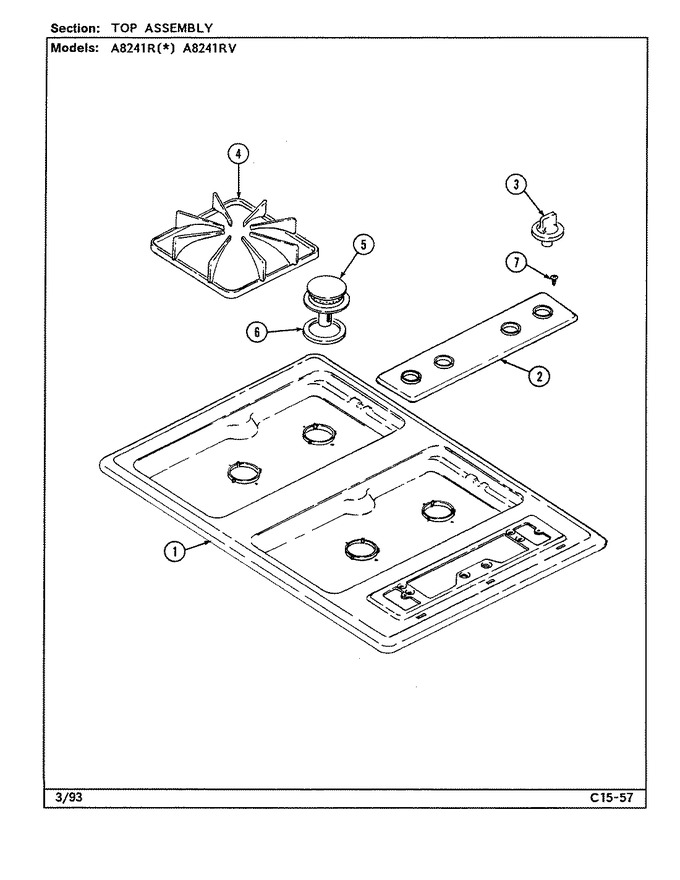

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W083-84 | Top, Main (alm) | 1 |
|
- | ||||
| 2 | 7720P146-60 | Panel, Control (blk) | 1 |
|
- | ||||
| 2 | 7719P062-60 | Nameplate, Admiral (blk) | 1 |
|
- | ||||
| 3 | 7733P045-60 | Knob, Burner (black) | 1 |
|
$ 16.33 | ||||
| 4 | 2003W023-00 | Grate (blk) | 1 |
|
- | ||||
| 5 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 1 |
|
Immediately | $ 92.69 | |||
| 6 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 1 |
|
Immediately | $ 92.69 | |||
| 7 | 8113P037-60 | Manual, Use & Care | 1 |
|
- | ||||
| 7 | WP74004005 | Screw (Replaces: 7101P076-60) | 1 |
|
$ 6.95 |
