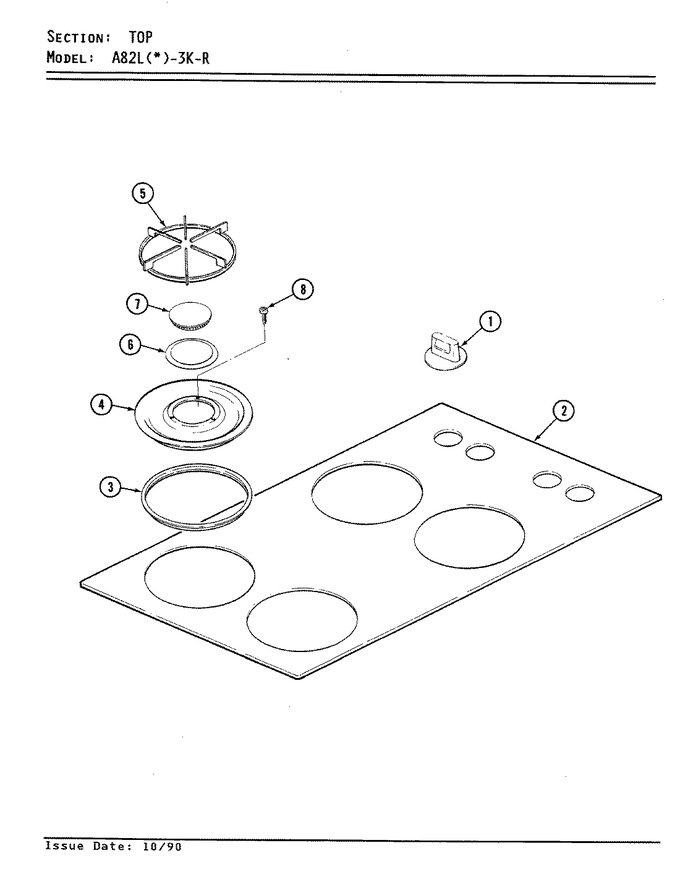

02 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7733P045-60 | Knob, Burner (black) | 1 |
|
$ 16.33 | ||||
| 1 | 7733P043-60 | Knob, Burner (wht) | 1 |
|
$ 19.91 | ||||
| 2 | 8270P053-60 | Tape, Seal Roll | 1 |
|
- | ||||
| 2 | 7918P024-60 | Glass Main Top | 1 |
|
- | ||||
| 3 | 12400008 | Tape, Seal 112`` Long | 1 |
|
- | ||||
| 4 | 3424F001-85 | Bowl, Drip | 6 |
|
- | ||||
| 4 | 3424F001-60 | Bowl, Drip (wht) | 1 |
|
- | ||||
| 5 | 2003F022-14 | Grate, Grey Round | 1 |
|
- | ||||
| 6 | 2014F002-60 | Ring Burner | 1 |
|
- | ||||
| 7 | 7504P009-60 | Cap, Burner (lt.gray) | 1 |
|
- | ||||
| 8 | 8112P041-60 | Manual, Use & Care | 1 |
|
- | ||||
| 8 | 7101P286-60 | Screw, Burner Mtg | 1 |
|
$ 7.00 |
