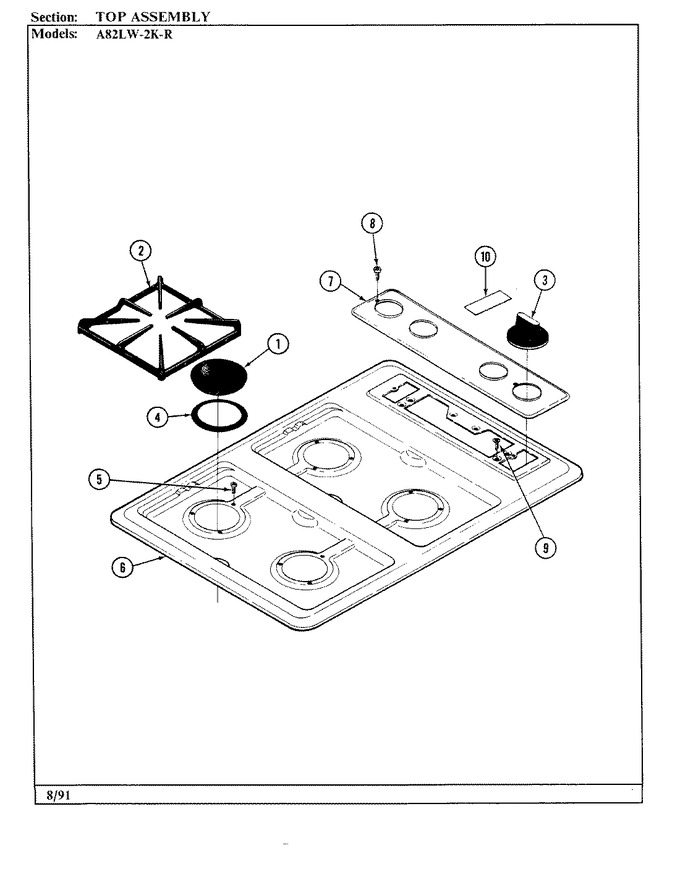

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7504P007-60 | Cap, Surface Burner, Black | 1 |
|
- | ||||
| 2 | 2003F029-00 | Grate, Black | 1 |
|
- | ||||
| 3 | 7733P045-60 | Knob, Burner (black) | 1 |
|
$ 16.33 | ||||
| 4 | 2014F001-90 | Ring, Black | 1 |
|
- | ||||
| 5 | 7101P256-60 | Screw | 1 |
|
- | ||||
| 6 | 2001W079-81 | Top, Main (white) | 1 |
|
- | ||||
| 7 | 7720P146-60 | Panel, Control (blk) | 1 |
|
- | ||||
| 8 | WP74004005 | Screw (Replaces: 7118P013-60) | 1 |
|
$ 6.95 | ||||
| 9 | WP4159193 | Screw (Replaces: 7118P004-60) | 1 |
|
$ 4.29 | ||||
| 10 | 7719P067-60 | Nameplate | 1 |
|
- |
