SELECT A DIAGRAM
01 - Cover

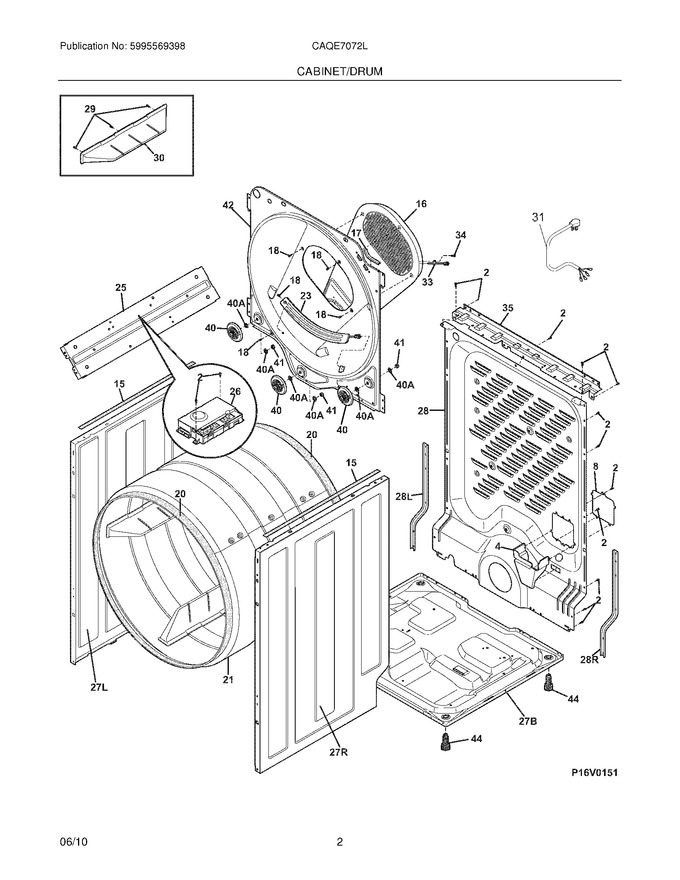

03 - Cabinet/drum
05 - Front Panel/lint Filter
07 - Controls/top Panel
09 - Motor
11 - Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 134792200 | Bracket,mounting ,terminal Block |
|
$ 26.09 | |||||
| 8 | 134694400 | Cover,terminal Block |
|
$ 72.18 | |||||
| 15 | 137031800 | Cushion,vibration ,top Panel |
|
Immediately | $ 8.51 | ||||
| 16 | 5304508449 | Duct,heat ,rear (Replaces: 134694020) |
|
Immediately | $ 108.44 | ||||
| 17 | 134792900 | Protector,edge ,right Top Front ,85.0+/-1.5 |
|
$ 13.46 | |||||
| 18 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 20 | 134705900 | Seal,felt ,drum |
|
$ 73.45 | |||||
| 21 | 134711910 | Drum,dryer ,assembly 36`` |
|
- | |||||
| 25 | 134912100 | Bracket,mounting ,main Control Bx |
|
- | |||||
| 28 | 134713200 | Panel,backsheet ,rear |
|
$ 191.15 | |||||
| 29 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 30 | 137116810 | Vane,straight ,gray |
|
$ 33.13 | |||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 35 | 134959000 | Bracket,top Panel Mtg. ,rear |
|
- | |||||
| 40 | 5304523155 | Roller,wheel ,complete Asmy (Replaces: 134715900) |
|
Immediately | $ 77.99 | ||||
| 41 | 134716800 | Nut,3/8-16 |
|
$ 2.98 | |||||
| 42 | 134712810 | Bulkhead,partition ,rear |
|
$ 180.41 | |||||
| 44 | 134158000 | Leveling Leg,screw |
|
- | |||||
| 27B | 134690203 | Base,dryer (Replaces: 134690200) |
|
$ 273.58 | |||||
| 27L | 134690340 | Panel,left Side ,red |
|
$ 197.14 | |||||
| 27R | 134690440 | Panel,right Side ,red |
|
$ 222.23 | |||||
| 28L | 137029900 | Bracket,reinforcement ,left ,backsheet |
|
- | |||||
| 28R | 137066800 | Bracket,reinforcement ,right ,backsheet |
|
- | |||||
| 40A | 134716700 | Washer,flat |
|
$ 2.12 | |||||
| F23 | 134786100 | Sensor-moisture,assembly |
|
$ 84.27 | |||||
| F26 | 134706720 | Control Board,main ,with Housing (Replaces: 134706710) |
|
$ 271.10 | |||||
| F31 | 5304505408 | Power Cord,electric Svce ,240 ,4-wire Canada (Replaces: 134502300) |
|
$ 194.62 | |||||
| F33 | 3204267 | Thermostat-safety |
|
Immediately | $ 53.49 | ||||
| NI | 134932400 | Strain Releif,240 ,pwr Cord |
|
$ 19.06 | |||||
| NI | 134716200 | Retainer,roller Wheel ,assembly |
|
$ 3.12 | |||||
| NI | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 | ||||
| NI | 134930800 | Harness,moisture Sensor |
|
Immediately | $ 48.44 | ||||
| NI | 137240400 | Brace,side Panel ,left Or Right |
|
- |
