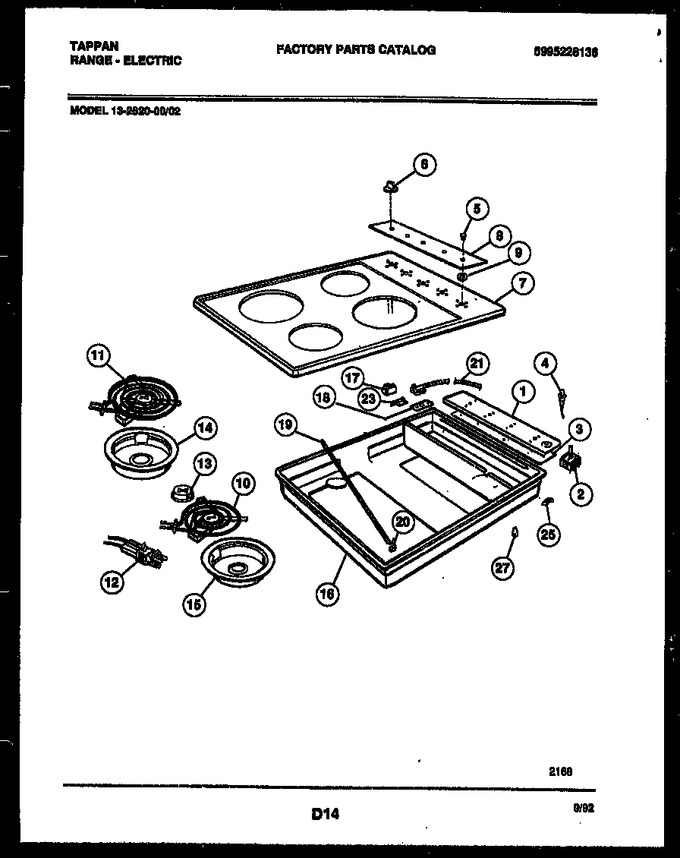

02 - Cooktop Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303291992		Plate, Instrument Mtg		Appelez-nous	-
2	3204918		Switch-top Unit-small (3)		Appelez-nous	-
3	5303270887		Seal-switch-plastic		Appelez-nous	-
4	3051601		Light-ind-250v		Appelez-nous	-
5	3016821		Lens-surface		Appelez-nous	-
6	3051596		Knob-control		Appelez-nous	-
7	5303292001		Panel-main Top-chrome		Appelez-nous	-
8	5303272286		Control Panel		Appelez-nous	-
9	5303272289		Seal		Appelez-nous	-
10	318372210		Element-small (3)   (Replaces: 5303015716)			Immediately	$ 20.21
11	316442300		Element-large (1)   (Replaces: 5303015715)			Immediately	$ 59.16
12	5303935058		Terminal Block (4)   (Replaces: 5301167733)			Immediately	$ 13.81
13	3017801		Medallion (4)		Appelez-nous	-
14	316048413		Pan-element Large (1)   (Replaces: 5303013588)			Immediately	$ 9.85
15	5303013589		Pan-element Small (3)		Appelez-nous	-
16	5303292002		Burner Box		Appelez-nous	-
17	5301506869		Connector-conduit		Appelez-nous	-
18	5303291326		Plate-grounding		Appelez-nous	-
19	5303292003		Rod-top Retainer		Appelez-nous	-
20	3016999		Fastener, Rod Mtg.		Appelez-nous	-
23	5303292006		Hinge Top Mtg (2)		Appelez-nous	-
25	3051224		Fastener-light Retainer		Appelez-nous	-
27	3014325		Terminal-c8 (2)		Appelez-nous	-
*11108	5303272288		Harness-surface Units		Appelez-nous	-
*11108	5303272287		Harness-main		Appelez-nous	-
*11108	5303292005		Screw-8-32x3/16 Ph Tr Hd-switch Mtg		Appelez-nous	-
*11108	5303013874		Screw-8ax3/8 Ph Tr Hd-main Top Mtg				$ 5.04
*11108	5308008938		Screw-8-32x1/4 Ph Bd Hd-terminal Block Mtg		Appelez-nous	-
*11109	154079601		Hex Nut-10-24-plate Mtg   (Replaces: 5303013272)				$ 0.41
*11109	19100290001		Wiring Diagram (not For Purchase)		Appelez-nous	-
2A	3204919		Switch-top Unit-large (1)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
