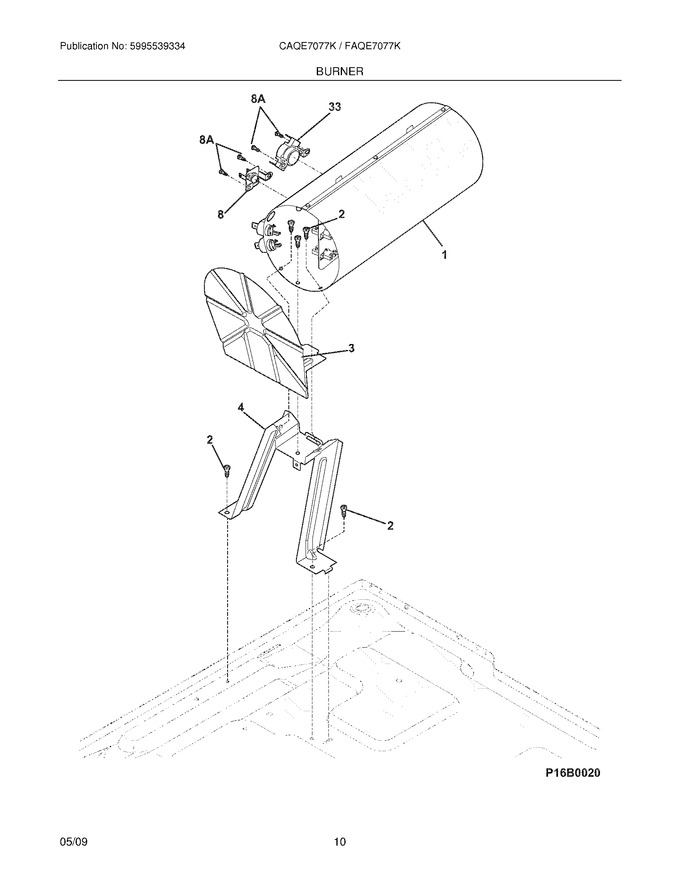

SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
3	134692701		Shield,radiant ,electric   (Replaces: 134692700)				$ 65.79
4	134785000		Bracket,heater/burner ,mounting		Appelez-nous	-
8	137032600		Limiter,thermal ,heater			Immediately	$ 22.00
8A	134935200		Screw,no.8-32 X .25 ,w/no.6 Quadrexpan				$ 13.46
F1	5304535760		Heater,1 Element ,4700w   (Replaces: 137114000)			Immediately	$ 120.58
F33	3204267		Thermostat-safety			Immediately	$ 53.49

    View Diagram in Separate Window       Print Part List
