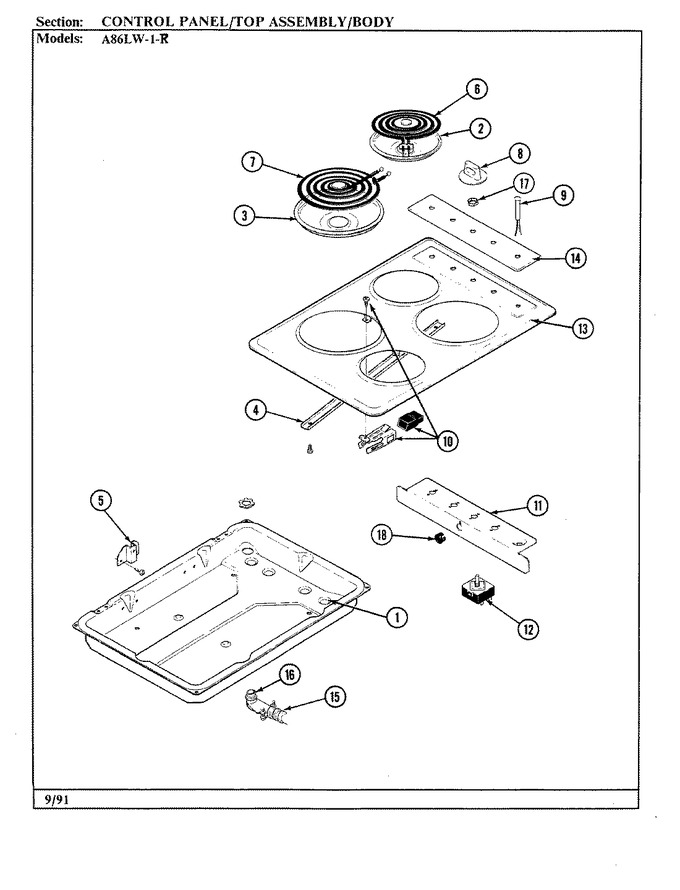

01 - Control Panel/top Assy./body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F143-80 | Bottom, Burner Box | 1 |
|
- | ||||
| 2 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P008-60) | 1 |
|
Immediately | $ 12.05 | |||
| 3 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P009-60) | 1 |
|
Immediately | $ 15.56 | |||
| 4 | 3802F070-80 | Brace, Top | 1 |
|
- | ||||
| 5 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 5 | 3801F183-45 | Bracket, Main Top Support | 1 |
|
- | ||||
| 5 | WP4159193 | Screw (Replaces: 7118P004-60) | 1 |
|
$ 4.29 | ||||
| 6 | WP660532 | Element (6``) (Replaces: 7406P037-60) | 1 |
|
Immediately | $ 36.90 | |||
| 7 | WP3191454 | Element, Giant Surface (Replaces: 7406P030-60) | 1 |
|
$ 163.63 | ||||
| 8 | 7737P029-60 | Knob, Switch | 1 |
|
$ 18.07 | ||||
| 9 | WP4159193 | Screw, Ground (grn) (Replaces: 7101P027-60) | 1 |
|
$ 4.29 | ||||
| 9 | 7407P062-60 | Lamp Signal | 1 |
|
- | ||||
| 9 | 8112P001-60 | Plate, Burner Box | 1 |
|
- | ||||
| 10 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 1 |
|
Immediately | $ 28.45 | |||
| 11 | 3604F133-80 | Shield Switch Wiring | 1 |
|
- | ||||
| 12 | W10900107 | Switch, Infinite (Replaces: 7403P027-60) | 1 |
|
Immediately | $ 51.87 | |||
| 13 | 2002W063-81 | Top Assy, Main Wht | 1 |
|
- | ||||
| 14 | 7719P067-60 | Nameplate | 1 |
|
- | ||||
| 14 | 7720P153-60 | Trim, Control Panel (wht) | 1 |
|
- | ||||
| 14 | 8008P014-60 | Grommet, Nylon | 1 |
|
- | ||||
| 15 | 3801F072-45 | Bracket, Conduit | 1 |
|
- | ||||
| 15 | 3414F035-44 | Tubing, Conduit (flexible) | 1 |
|
- | ||||
| 17 | 7103P021-60 | Nut, Switch | 1 |
|
- | ||||
| 18 | 8008P014-60 | Grommet, Nylon | 1 |
|
- | ||||
| NI | 7417P004-60 | Connector, Right Ang | 1 |
|
- | ||||
| NI | 8018P001-60 | Sleeve, Tube | 1 |
|
- |
