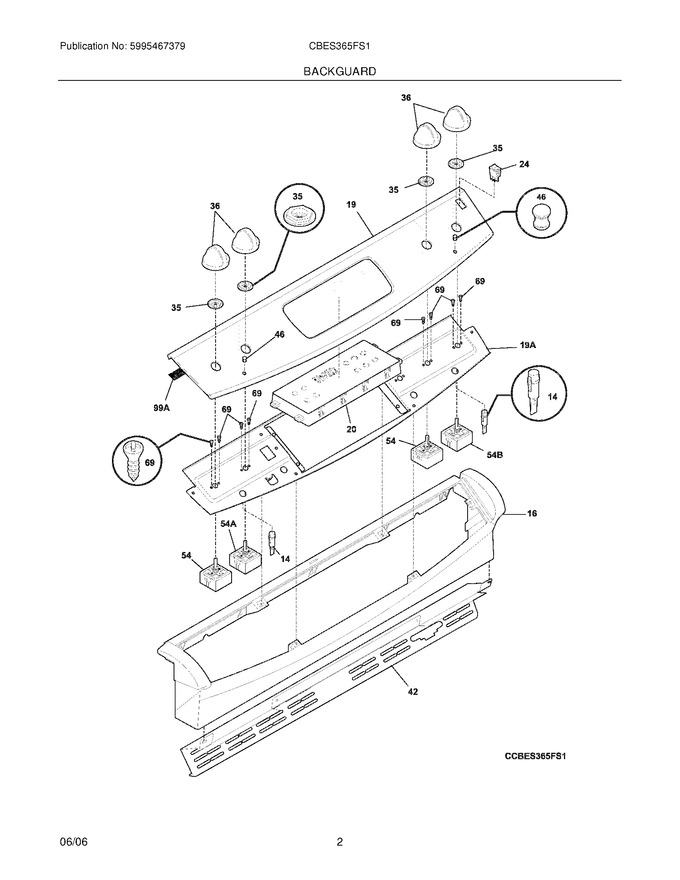

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299100		Console,assy. ,white				$ 418.11
19	318235120		Panel,control ,white		Appelez-nous	-
35	318183101		Support,glass ,white ,(4)				$ 14.07
36	318017110		Knob,control ,white				$ 43.00
42	318298001		Trim,vent ,black ,upper				$ 59.01
46	318228300		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
19A	9910999SI		Panel,control Mtg.   (Replaces: 318224401)		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293900		Light,indicator ,125v ,(2)		Appelez-nous	-
F20	318414216		Clock/timer,electronic ,white ,es300   (Replaces: 318185459)				$ 507.99
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	903136-9030		Switch,surface Unit ,small   (Replaces: 318220083)			Immediately	$ 66.02
F54A	903136-9040		Switch,surface Unit ,large   (Replaces: 318220084)			Immediately	$ 70.04
F54B	318191024		Switch,infinite ,dual			Immediately	$ 92.38
NI	318214515		Overlay,control ,white ,es300				$ 20.00
NI	5304453707		Screw,control Mtg.			Immediately	$ 15.92
NI	318228817		Harness,wiring ,main ,backguard		Appelez-nous	-
NI	318224812		Harness,wiring ,timer				$ 196.88
NI	318224815		Harness,wiring ,infinite Switch		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
