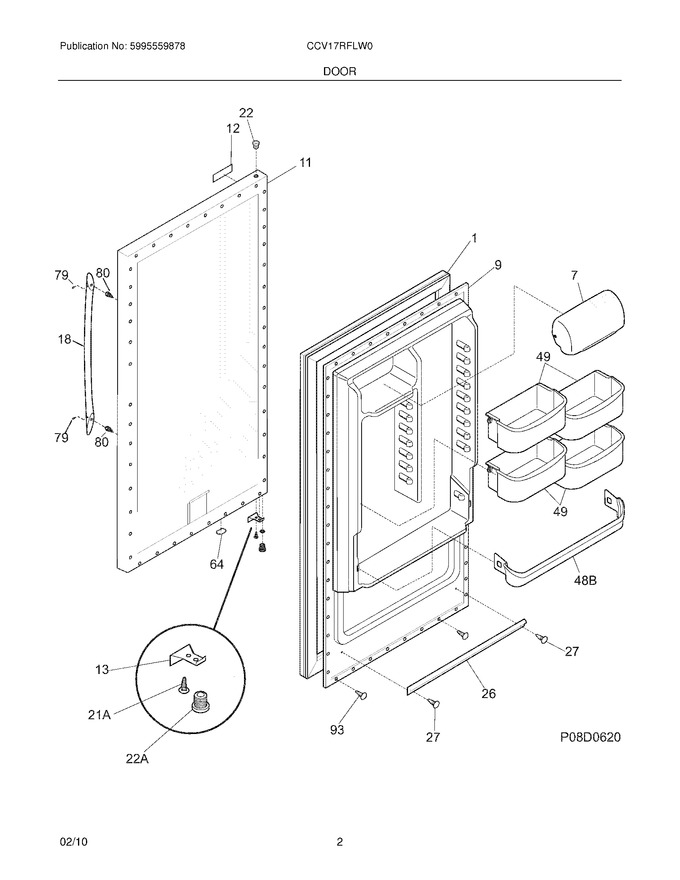

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522309)			Immediately	$ 188.19
7	240338313		Door,dairy ,clear			Immediately	$ 80.80
9	216953600		Panel-inner Door,refr				$ 203.41
11	297316506		Panel-outer Door,white				$ 236.87
12	242013601		Label-nameplate		Appelez-nous	-
13	297257002		Door Stop,lh				$ 15.22
18	297422020		Handle-door,white   (Replaces: 297233800)				$ 99.77
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary				$ 49.62
27	5304472186		Clip,panel Mtg				$ 11.57
49	216959802		Bin-door,2-liter ,(4)   (Replaces: 216959800)			Immediately	$ 83.49
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
21A	297197500		Screw,door Stop Mtg ,fh38-16x.750 ,p Twin				$ 14.46
22A	297006800		Bearing-hinge,btm, W/o`ring				$ 12.29
48B	240338001		Bin-door,pseudo ,gallon ,refr			Immediately	$ 34.96
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	297048000		Screw,anchor ,no.8 ,white				$ 12.05
NI	240537301		Nut-anchor,door Hdl Screw				$ 11.34
NI	297175300		Wrench,allen				$ 15.49
NI	297257000		Door Stop,chrome ,rh				$ 16.63
