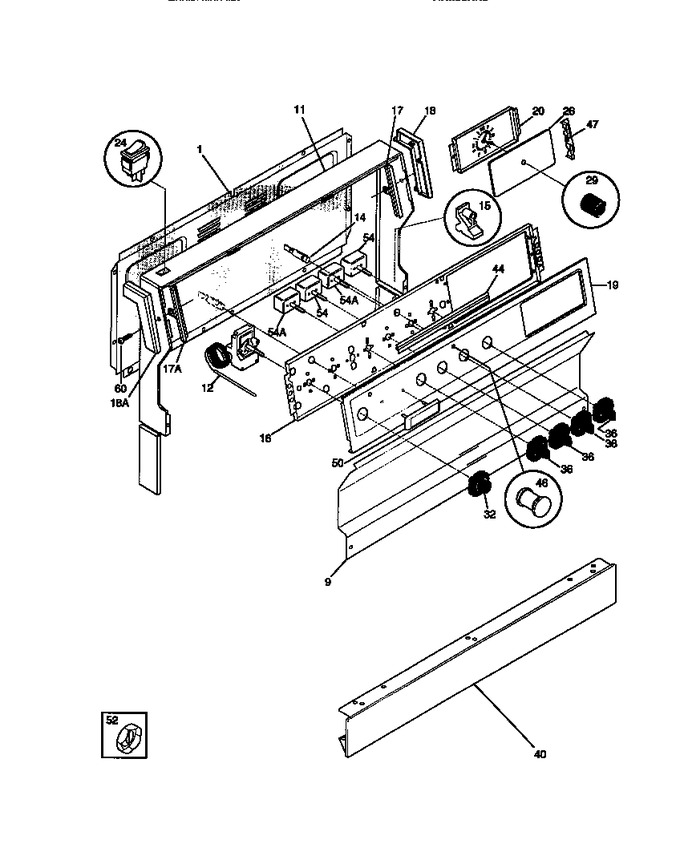

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043601		Trim-splasher, White		Appelez-nous	-
11	3204764		Trim-wrapper		Appelez-nous	-
12	5303212745		Thermostat-oven		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042603		Plate, Instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
17	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18	5303272308		End Cap,black ,rh		Appelez-nous	-
18	5303272307		End Cap,black ,lh		Appelez-nous	-
19	316034510		Panel-control, Metal		Appelez-nous	-
20	316043702		Clock/timer, T.o.d. 1 Stem, 220 V, 50 Hz		Appelez-nous	-
24	5308015487		Switch,oven Light ,rocker				$ 61.43
26	5303208985		Lens-clock, Glass		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
32	316016803		Knob-thermostat		Appelez-nous	-
36	316016902		Knob-control, Infinite Sw		Appelez-nous	-
40	316009222		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065800		Lens, Light/lamp, Indicator, Amber		Appelez-nous	-
47	3201700		Retainer, Clock Glass, (2)		Appelez-nous	-
50	316052100		Bezel-nameplate		Appelez-nous	-
52	5303131215		Nut, Twist		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
54	5303285143		Switch, 8`` Element		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
*94240	3051224		Retainer-lens		Appelez-nous	-
*94241	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*94242	5303272555		Clip-backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
