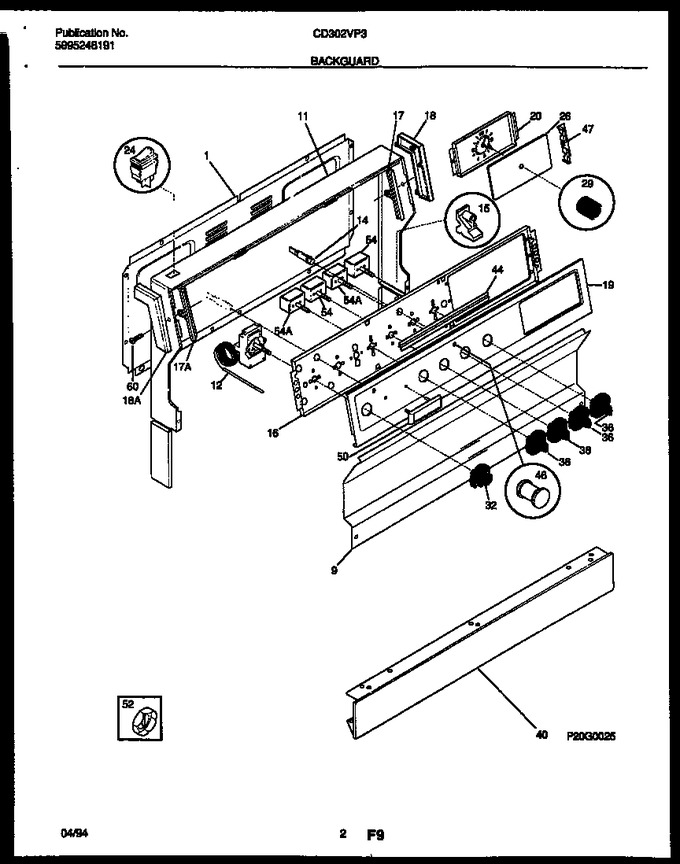

02 - Backguard
03 - Body Parts
04 - Cooktop And Drawer Parts
05 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131123 | Shield-backguard,rear Wall |
|
- | |||||
| 9 | 316043601 | Trim-splasher, White |
|
- | |||||
| 11 | 3204764 | Trim-wrapper |
|
- | |||||
| 12 | 5303212745 | Thermostat-oven |
|
- | |||||
| 14 | 3201726 | Light/lamp, Indicator, Blue, 250 V |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 5303212662 | Plate, Instrument Mtg |
|
- | |||||
| 17 | 3204754 | Trim-glass Retainer,rh |
|
- | |||||
| 18 | 5303272308 | End Cap,black ,rh |
|
- | |||||
| 19 | 316034510 | Panel-control, Metal |
|
- | |||||
| 20 | 316043702 | Clock/timer, T.o.d. 1 Stem, 220 V, 50 Hz |
|
- | |||||
| 24 | 5303208662 | Switch-oven Light, Rocker |
|
- | |||||
| 26 | 5303208985 | Lens-clock, Glass |
|
- | |||||
| 29 | 3131472 | Knob-clock |
|
- | |||||
| 32 | 316016803 | Knob-thermostat |
|
- | |||||
| 36 | 316016902 | Knob-control, Infinite Sw |
|
- | |||||
| 40 | 316009222 | Panel-manifold |
|
- | |||||
| 44 | 3131468 | Bracket, Backguard |
|
- | |||||
| 46 | 5308037703 | Lens-light/lamp, Indicator, Amber |
|
- | |||||
| 47 | 3201700 | Retainer, Clock Glass, (2) |
|
- | |||||
| 50 | 316052100 | Bezel-nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist |
|
- | |||||
| 54 | 5303935086 | Switch-6`` Element (Replaces: 5303285142) |
|
Immediately | $ 51.95 | ||||
| 60 | 5303289970 | Screw-end Cap Mtg,oval Head ,6-20ab X 1/2 |
|
- | |||||
| *96828 | 5303272555 | Clip-backguard |
|
- | |||||
| *96828 | 3051224 | Retainer-lens |
|
- | |||||
| *96828 | 3204745 | Bushing-ctrl Shaft |
|
- | |||||
| 17A | 3204753 | Trim-glass Retainer,lh |
|
- | |||||
| 18A | 5303272307 | End Cap,black ,lh |
|
- | |||||
| 54A | 5303285143 | Switch, 8`` Element |
|
- |
