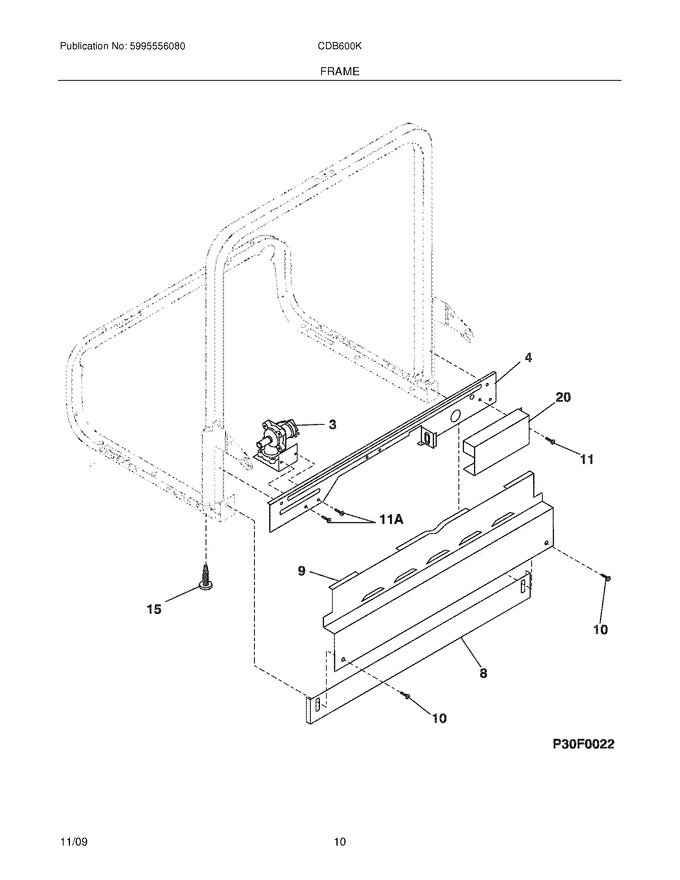

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	154669301		Brace,front Frame				$ 44.31
8	154745501		Toeplate,adjustable ,white   (Replaces: 154589401)			Immediately	$ 21.27
9	5304501482		Kickplate Assy,white   (Replaces: 154589501)				$ 51.08
10	154371301		Screw,phillips Head ,white			Immediately	$ 12.76
11	134154100		Screw-no.10-32 X 3/8   (Replaces: 154200701)				$ 13.46
15	5304506540		Leg,leveling ,(4)   (Replaces: 154571101)			Immediately	$ 10.85
20	154758501		Cover,junction Box ,w/label				$ 20.84
11A	154200601		Screw,no.10-16 X 3/8				$ 7.98
F3	154637401		Valve,water			Immediately	$ 21.36
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
NI	154200602		Screw,10-16 X 3/8 ,hex				$ 10.21
NI	808326801		Screw,ground ,no.8-18 X .375   (Replaces: 154409401)				$ 2.84
