Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10153823 Refrigerator Door (includes Illus 9 & Molded Door Handle) (white) Appelez-nous -
1 2265677B Refrigerator Door (includes Illus 9 & Molded Door Handle) (black) Appelez-nous -
1 W10209801 Refrigerator Door (includes Illus 9 & Molded Door Handle) (stainless) Appelez-nous -
1 2265677R Refrigerator Door (includes Illus 9 & Molded Door Handle) (red Merlot) Appelez-nous -
1 2265677D Refrigerator Door (includes Illus 9 & Molded Door Handle) (universal Silver) Appelez-nous -
1 2265677N Refrigerator Door (includes Illus 9 & Molded Door Handle) (metallic Navy Blue) Appelez-nous -
1 W10278947 Refrigerator Door (includes Illus 9 & Molded Door Handle) (green Tea) Appelez-nous -
2 WP2207942 Door, Compartment   (Replaces: 2207942) In-Stock Immediately $ 52.88

3 WP2258681W Shim, Door Stop (white)   (Replaces: 2258681W) In-Stock Immediately $ 6.47

3 2258681B Shim, Door Stop (black) Special Order $ 38.85

4 WP2212651 Hole Plug (black)   (Replaces: 2212651) Special Order $ 20.75

4 WP2254517 Hole Plug (silver)   (Replaces: 2212648D) In-Stock Immediately $ 20.86

4 WP2212648 Hole Plug (white)   (Replaces: 2212648) Special Order $ 7.02

5 WP2266727 Trim, Door Shelf (narrow)   (Replaces: 2266727) In-Stock Immediately $ 83.25

6 WP2156003 End Cap, Trim   (Replaces: 2156003) In-Stock Immediately $ 11.36

7 WP2266738 Trim, Door Shelf (wide)   (Replaces: 2266738) Special Order $ 100.52

8 WP2195916K Endcap, Trim   (Replaces: 2195916) In-Stock Immediately $ 11.30

9 WP2319264B Door Gasket, Magnetic (black)   (Replaces: 2264723) Special Order $ 277.59

9 W11578847 Door Gasket, Magnetic (apollo Grey)   (Replaces: W10246160) In-Stock Immediately $ 215.42

9 WP2319264W Door Gasket, Magnetic (white)   (Replaces: 2264727) In-Stock Immediately $ 282.07

10 W11129820 Trim, Door   (Replaces: W10234242) In-Stock Immediately $ 109.15

11 W11745278 Bracket, Door Stop   (Replaces: 2189202) In-Stock Immediately $ 12.03

12 W10276642 Screw   (Replaces: 8533904) Special Order $ 5.49

13 2325418 Nameplate-amana Special Order $ 44.68

14 2265678R Freezer Door (includes Illus 15 & Molded Door Handle) (red Merlot) Appelez-nous -
14 W10209802 Freezer Door (includes Illus 15 & Molded Door Handle) (stainless) Appelez-nous -
14 2265678B Freezer Door (includes Illus 15 & Molded Door Handle) (black) Appelez-nous -
14 W10162670 Freezer Door (includes Illus 15 & Molded Door Handle) (white) Appelez-nous -
14 2265678N Freezer Door (includes Illus 15 & Molded Door Handle) (metallic Navy Blue) Appelez-nous -
14 W10278946 Freezer Door (includes Illus 15 & Molded Door Handle) (green Tea) Appelez-nous -
14 2265678D Freezer Door (includes Illus 15 & Molded Door Handle) (universal Silver) Appelez-nous -
15 W11661186 Door Gasket, Magnetic (apollo Grey)   (Replaces: W10244875) In-Stock Immediately $ 197.19

15 WP2319263W Door Gasket, Magnetic (white)   (Replaces: 2264726) In-Stock Immediately $ 135.93

15 WP2319263B Door Gasket, Magnetic (black)   (Replaces: 2264722) In-Stock Immediately $ 229.95


    View Diagram in Separate Window     Print Icon   Print Part List

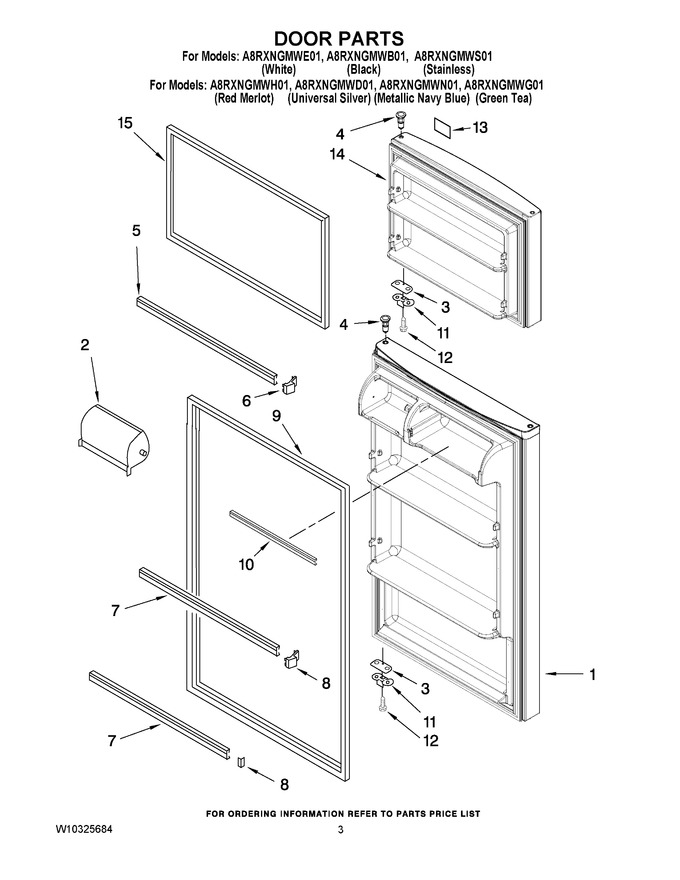

Diagram for A8RXNGMWS01
