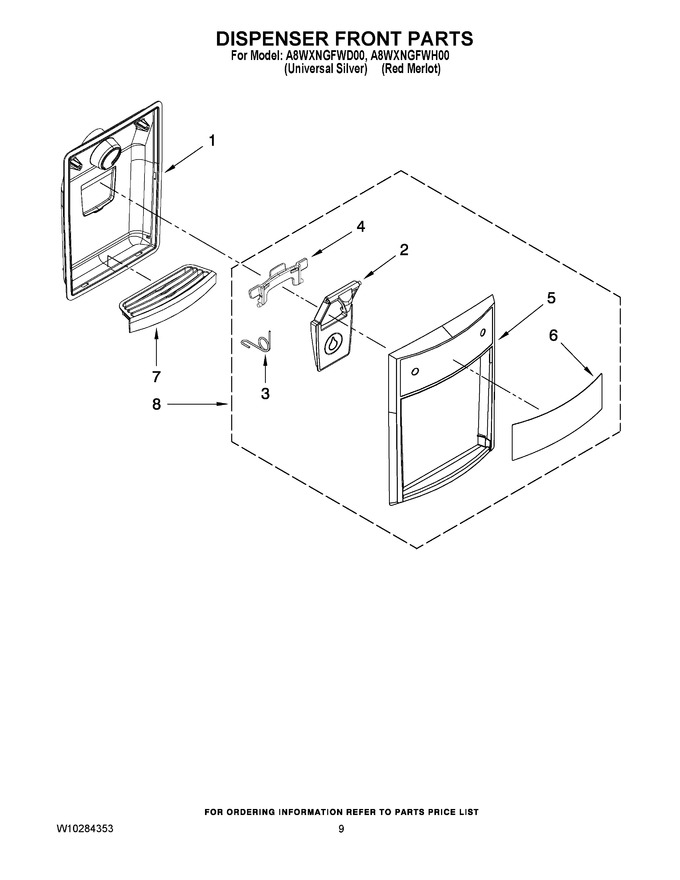

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | 2321136D | Lever, Water Dispenser |
|
- | |||||
| 3 | 2321137 | Spring |
|
- | |||||
| 4 | 2321143D | Lock |
|
- | |||||
| 5 | N/P | Front Cover (not Serviced) |
|
- | |||||
| 6 | 2321141 | Overlay |
|
- | |||||
| 7 | 2328533D | Grille, Overflow |
|
- | |||||
| 8 | 2325540D | Front Cover Assembly |
|
- |
