01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Dispenser Front Parts
06 - Shelf Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

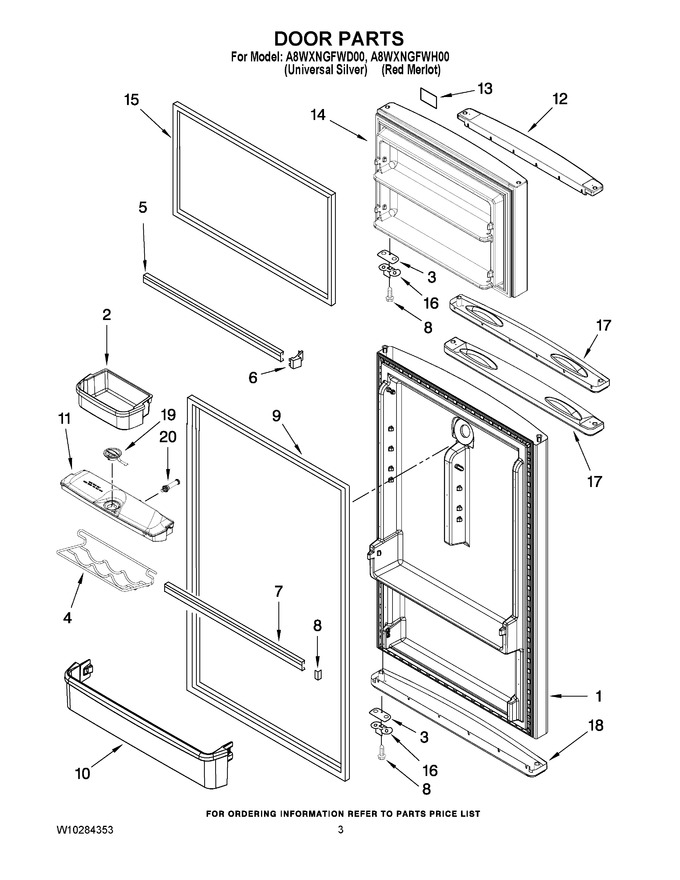

| 1 | W10209946 | Refrigerator Door (includes Illus. 9) (red Merlot) |
|
- | |||||
| 1 | W10209945 | Refrigerator Door (includes Illus. 9) (universal Silver) |
|
- | |||||
| 2 | W11396038 | Bin, Door (Replaces: 2265126) |
|
$ 138.81 | |||||
| 3 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 4 | 2265630 | Can Rack |
|
- | |||||
| 5 | WP2266727 | Trim, Door Shelf (narrow) (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 6 | WP2156003 | End Cap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 7 | WPW10234241 | Trim, Door Shelf (Replaces: W10234241) |
|
Immediately | $ 104.87 | ||||
| 8 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 9 | W11578847 | Door Gasket, Magnetic (Replaces: W10246160) |
|
Immediately | $ 215.42 | ||||
| 10 | WPW10468559 | Trim, Door (Replaces: 2328217) |
|
$ 93.74 | |||||
| 11 | W10138779A | Water Tank Assy (Replaces: W10138779) |
|
$ 68.79 | |||||
| 12 | W10209944 | Endcap, Top |
|
- | |||||
| 13 | 2325418 | Nameplate |
|
$ 44.68 | |||||
| 14 | W10209947 | Freezer Door (includes Illus. 15) (universal Silver) |
|
- | |||||
| 14 | W10209948 | Freezer Door (includes Illus. 15) (red Merlot) |
|
- | |||||
| 15 | W11661186 | Door Gasket, Magnetic (Replaces: W10244875) |
|
Immediately | $ 197.19 | ||||
| 16 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 17 | W10209940 | Endcap, Handle |
|
- | |||||
| 18 | W10209942 | Endcap, Bottom |
|
- | |||||
| 19 | W10138779A | Lid, Water Tank (Replaces: 2328518) |
|
$ 68.79 | |||||
| 20 | 2328499A | Valve, Water Tank (Replaces: 2328499) |
|
$ 27.39 |
