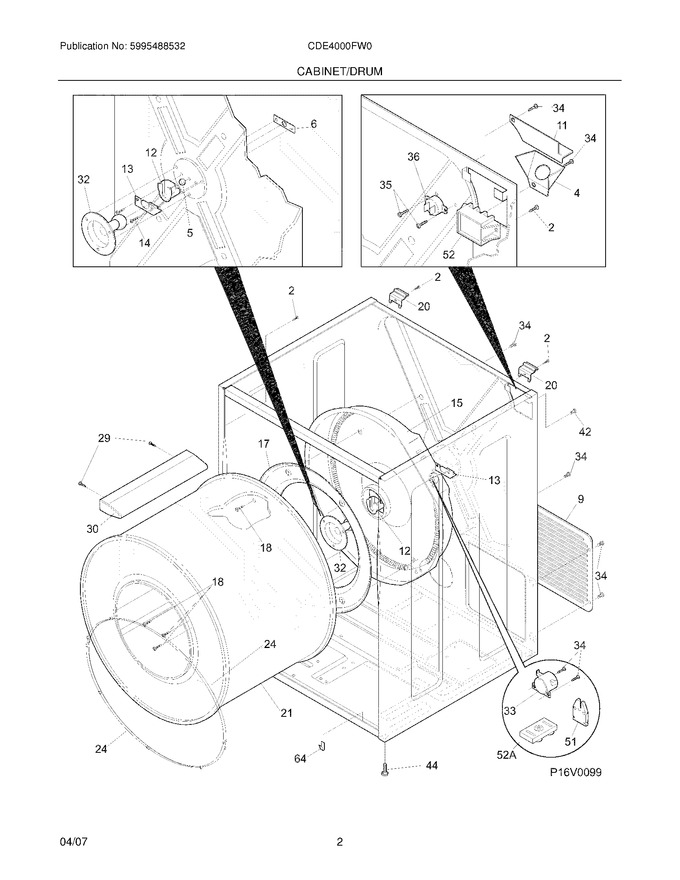

03 - Cabinet/drum
05 - Front Panel/lint Filter
07 - Controls/top Panel
09 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 131785200 | Bracket,elec Power Cord ,knock Out |
|
$ 30.08 | |||||
| 5 | 5303281019 | Ball,grounding |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip,ball ,steel ,flat Nut |
|
$ 17.01 | |||||
| 9 | 131793200 | Panel,service Access ,rear |
|
- | |||||
| 11 | 5303211428 | Cover, Terminal Block |
|
$ 44.15 | |||||
| 12 | 131825900 | Bearing-drum Support |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket,bearing Support (Replaces: 131724300) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive |
|
$ 12.76 | |||||
| 17 | 3204254 | Baffle,heater Shield |
|
$ 129.00 | |||||
| 18 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 20 | 134166500 | Bracket,top Panel Mtg. ,rear |
|
$ 49.51 | |||||
| 21 | 134122532 | Drum,dryer ,galvanized Stl. ,service Kit |
|
$ 484.07 | |||||
| 24 | 137513300 | Glide-drum (Replaces: 131963900) |
|
Immediately | $ 36.68 | ||||
| 29 | 131382300 | Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane,straight (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 32 | 131777700 | Shaft,drum Support ,ballhitch |
|
Immediately | $ 71.87 | ||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 35 | 131892100 | Screw,6-20b X 0.230 |
|
- | |||||
| 42 | 134154100 | Screw,hex Washer Head ,10-32 X 0.375 ,ground |
|
$ 13.46 | |||||
| 44 | 134344900 | Leveling Leg,screw |
|
$ 14.23 | |||||
| 51 | 131472100 | Insulator,heater Housing |
|
$ 60.01 | |||||
| 64 | 134360100 | Bracket,svce Panel Mtg. |
|
- | |||||
| F15 | 131553900 | Heater Assy,w/housing/felt |
|
Immediately | $ 96.91 | ||||
| F33 | 3204267 | Thermostat-safety |
|
Immediately | $ 53.49 | ||||
| F36 | 134120900 | Thermal Limiter |
|
Immediately | $ 13.21 | ||||
| F52 | 134101400 | Terminal Block,main |
|
Immediately | $ 55.99 | ||||
| F52A | 3202786 | Terminal Block,heater Housing |
|
$ 64.49 | |||||
| NI | 5303281153 | Rear Bearing Kit, Includes 5, 6, 12, 13, 14, 18, 32 |
|
Immediately | $ 46.64 | ||||
| NI | 5303307893 | Lubricant, High Temp |
|
$ 34.02 | |||||
| NI | 134467300 | Stacking Kit,washer/dryer |
|
$ 40.20 | |||||
| NI | 134394200 | Wiring Harness,main |
|
$ 170.94 |
