SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum

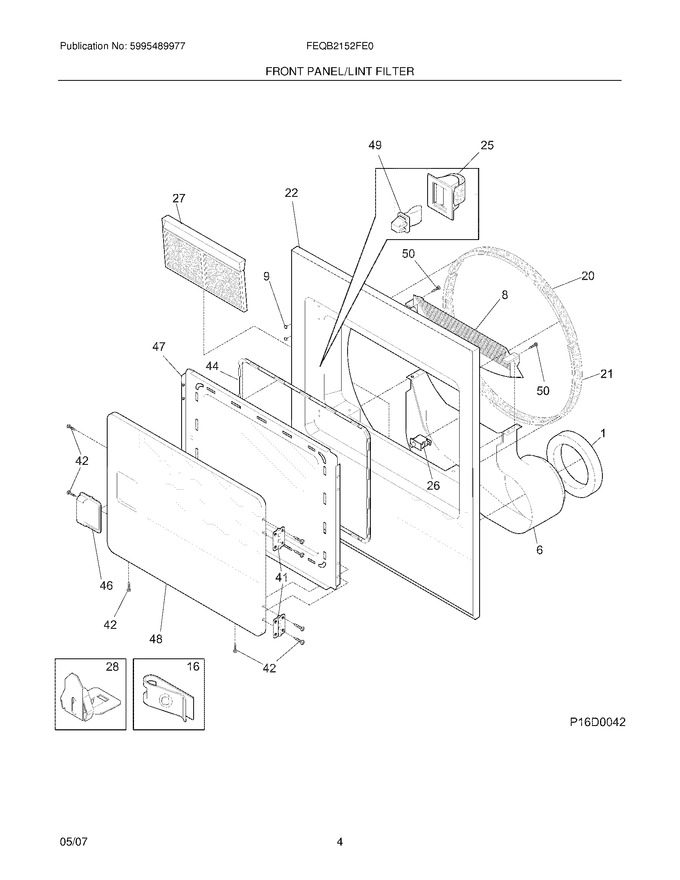

05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal,air Duct			Immediately	$ 9.22
6	131621900		Duct-air		Appelez-nous	-
8	131622202		Cover-lint Housing				$ 94.82
9	131633200		Plug,white				$ 15.90
16	134440100		Clip,u-nut				$ 7.30
20	134440200		Seal,felt ,upper			Immediately	$ 41.24
21	5303937183		Seal,felt ,lower   (Replaces: 134134700)			Immediately	$ 35.87
22	131845912		Panel,front ,white ,w/lamp Hole		Appelez-nous	-
25	131658800		Door Catch,upper			Immediately	$ 68.38
27	131450300		Trap,lint Blade Assy			Immediately	$ 30.47
28	134440000		Clip,guide		Appelez-nous	-
41	134222900		Hinge,dryer Door				$ 22.68
42	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
44	137551901		Gasket,door Seal   (Replaces: 131129900)			Immediately	$ 41.00
46	131644700		Handle-door, White			Immediately	$ 59.54
47	131844104		Panel-inner Door White				$ 224.12
48	131789303		Panel,outer Door ,white				$ 168.47
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
F26	134813600		Switch,door   (Replaces: 131843100)			Immediately	$ 43.09
NI	131474700		Insulation				$ 33.67
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25

    View Diagram in Separate Window       Print Part List
