SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum

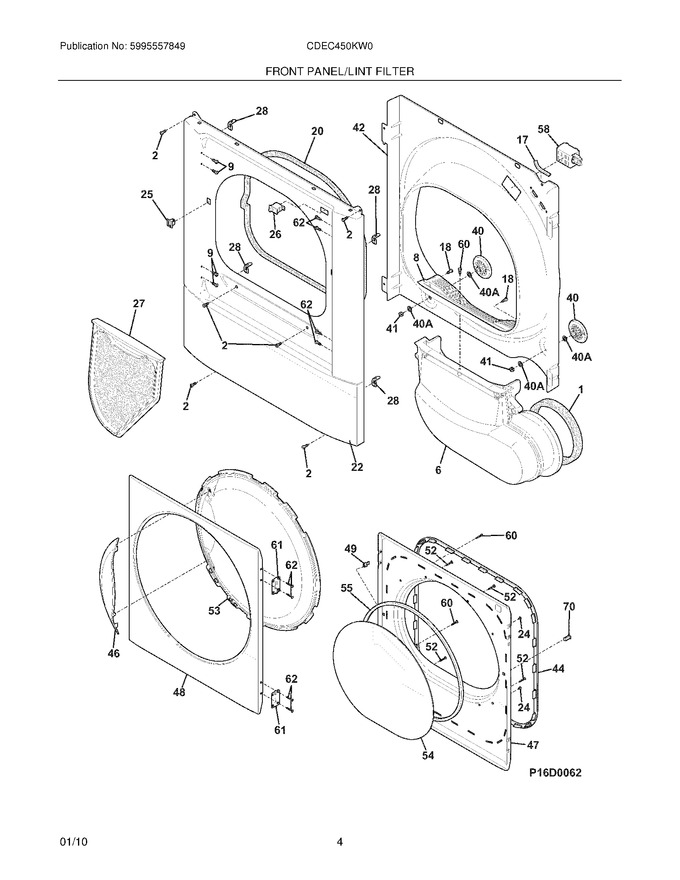

05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137068200		Seal,air Duct				$ 14.81
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
6	134710705		Duct,air ,gray				$ 208.95
8	137554110		Cover,lint Housing   (Replaces: 134701310)			Immediately	$ 111.80
9	131633200		Plug,white				$ 15.90
17	134792900		Protector,edge ,right Top Front ,85.0+/-1.5				$ 13.46
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	137116600		Gasket,front Panel				$ 151.53
22	134714310		Panel,front ,white		Appelez-nous	-
24	134465100		Plug,handle Hole				$ 9.24
25	131658800		Door Catch,upper			Immediately	$ 68.38
27	134701410		Filter, Lint ,complete			Immediately	$ 74.14
28	137034500		Clip,mounting ,cabinet Front				$ 43.24
40	5304523155		Roller,wheel ,complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut,3/8-16				$ 2.98
42	134696110		Bulkhead,panel ,front				$ 239.93
44	134413300		Gasket,door Seal				$ 67.28
46	134472203		Handle,door		Appelez-nous	-
47	134913304		Panel,inner Door ,white				$ 197.24
48	134913103		Panel,outer Door ,white				$ 83.42
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
52	131243700		Screw,indt Pan Head ,8-18ab X 0.375   (Replaces: 134529600)				$ 3.36
53	134443203		Adapter,door Glass Ring				$ 210.11
54	134611800		Glass,inner Door		Appelez-nous	-
55	134580300		Gasket,door Glass ,inner				$ 66.51
60	134430300		Screw,indt Pan Head ,10-14 X 0.625 ,quadrex			Immediately	$ 14.89
61	134412400		Hinge,door				$ 55.13
62	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
70	134417500		Plug,rectangular ,white				$ 16.22
40A	134716700		Washer,flat				$ 2.12
F26	134813601		Switch,door ,rectangle ,white ,with Drum Light			Immediately	$ 33.09
F58	131843500		Lamp Assy,drum Light ,w/mtg Bracket				$ 73.00
FNI	131843500		Lamp   (Replaces: 131862800)				$ 73.00
NI	134716200		Retainer,roller Wheel ,assembly				$ 3.12
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NI	134910300		Harness,wire ,door Switch				$ 21.16

    View Diagram in Separate Window       Print Part List
