SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum

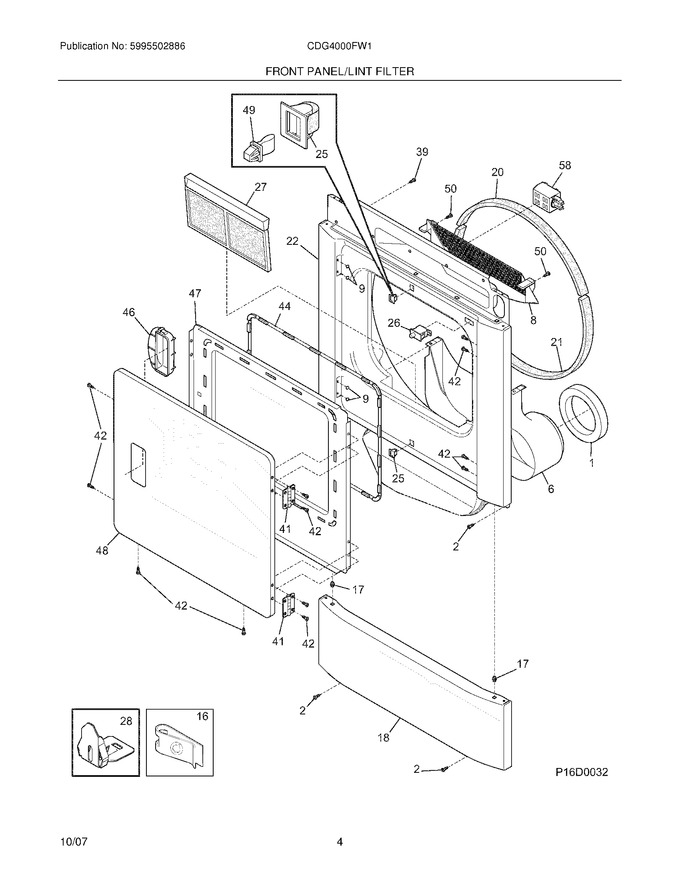

05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal,air Duct			Immediately	$ 9.22
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
6	134382900		Duct,air				$ 183.12
9	131633200		Plug,white				$ 15.90
16	134440100		Clip,u-nut				$ 7.30
17	134408700		Clip,assembly				$ 8.35
18	134321702		Panel,front Service ,white				$ 139.33
20	134440200		Seal,felt ,upper			Immediately	$ 41.24
21	5303937183		Seal,felt ,lower   (Replaces: 134134700)			Immediately	$ 35.87
22	134915502		Panel,front ,white ,w/lamp Hole				$ 202.97
25	131658800		Door Catch,upper			Immediately	$ 68.38
27	131450300		Trap,lint Blade Assy			Immediately	$ 30.47
28	134440000		Clip,guide		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
41	134412400		Hinge,door				$ 55.13
42	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
44	134413300		Gasket,door Seal				$ 67.28
46	134439300		Handle,door				$ 52.76
47	134913204		Panel,inner Door ,white				$ 46.62
48	134913003		Panel,outer Door ,white				$ 152.25
49	5303207102		Door Strike   (Replaces: 134548100)			Immediately	$ 19.85
50	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
F26	134813601		Switch,door ,rectangle ,with Drum Light   (Replaces: 131843101)			Immediately	$ 33.09
F58	131843500		Lamp Assy,drum Light ,w/mtg Bracket				$ 73.00
F8	131845802		Cover,lint Housing ,w/moist Sensor				$ 175.40
FNI	131843500		Lamp   (Replaces: 131862800)				$ 73.00
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25

    View Diagram in Separate Window       Print Part List
