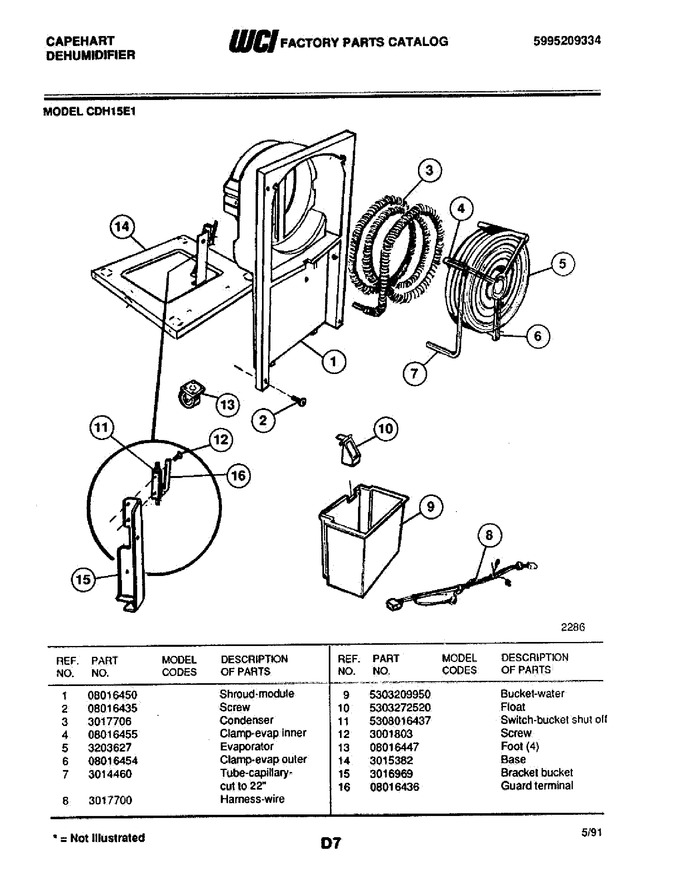

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08016450		Shroud-module		Appelez-nous	-
2	08016435		Screw		Appelez-nous	-
3	3017706		Condenser		Appelez-nous	-
4	08016455		Clamp-evap Inner		Appelez-nous	-
5	3203627		Evaporator		Appelez-nous	-
6	08016454		Clamp-evap Outer		Appelez-nous	-
7	3014460		Tube-capillary-cut To 22``		Appelez-nous	-
8	3017700		Harness-wire		Appelez-nous	-
9	5303209950		Bucket-water		Appelez-nous	-
10	5303272520		Float		Appelez-nous	-
11	5308016437		Switch-bucket Shut-off				$ 41.55
12	3001803		Screw		Appelez-nous	-
13	08016447		Foot		Appelez-nous	-
14	3015382		Base		Appelez-nous	-
15	3016969		Bracket Bucket		Appelez-nous	-
16	08016436		Guard-terminal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
