Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308016457 Wrapper Appelez-nous -
2 3002958 Trim Appelez-nous -
4 08016435 Screw Wrapper Appelez-nous -
5 5303276491 Dial Plate Appelez-nous -
6 08012705 Lens Light Amber Appelez-nous -
7 5303284039 Knob Appelez-nous -
8 5303300850 Panel-front Appelez-nous -
9 5303271346 Screw Appelez-nous -
10 5303275278 Caster Special Order $ 30.40

11 5303296823 Humidistat Special Order $ 142.17

12 5303211050 Bracket Appelez-nous -
13 5303007620 Screw Special Order $ 9.31

14 5303300841 Light Appelez-nous -
08010919 Screw Front Panel (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

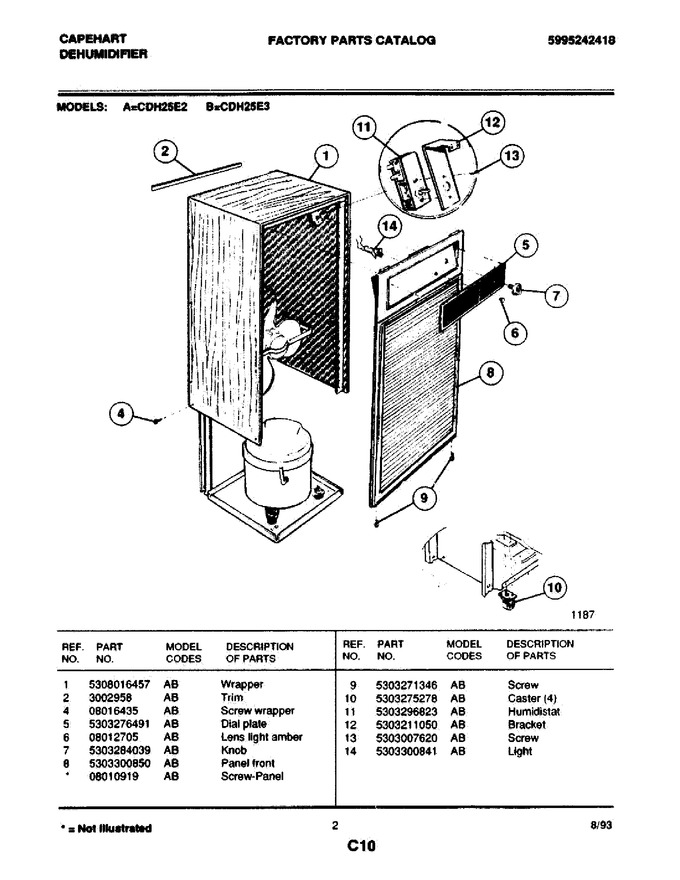

Diagram for CDH25E2
