SELECT A DIAGRAM
01 - Cover
02 - Wrapper
03 - Fan
04 - Condenser
05 - Compressor
New Model Search:

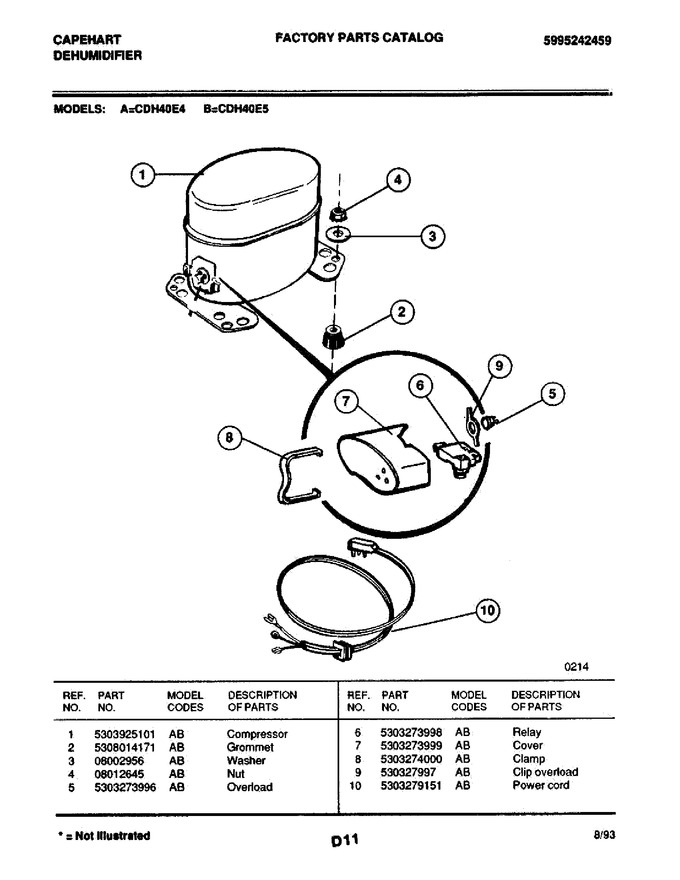

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925101 | Compressor |
|
- | |||||
| 2 | 5308014171 | Grommet |
|
- | |||||
| 3 | 08002956 | Washer |
|
- | |||||
| 4 | 08012645 | Nut |
|
- | |||||
| 5 | 5303273996 | Overload |
|
$ 66.05 | |||||
| 6 | 5303273998 | Relay |
|
- | |||||
| 7 | 5303273999 | Cover |
|
- | |||||
| 8 | 5303274000 | Clamp |
|
- | |||||
| 9 | 530327997 | Clip Overload |
|
- | |||||
| 10 | 5303279151 | Power Cord |
|
- |
