SELECT A DIAGRAM
01 - Cover
02 - Wrapper
03 - Fan
04 - Condenser

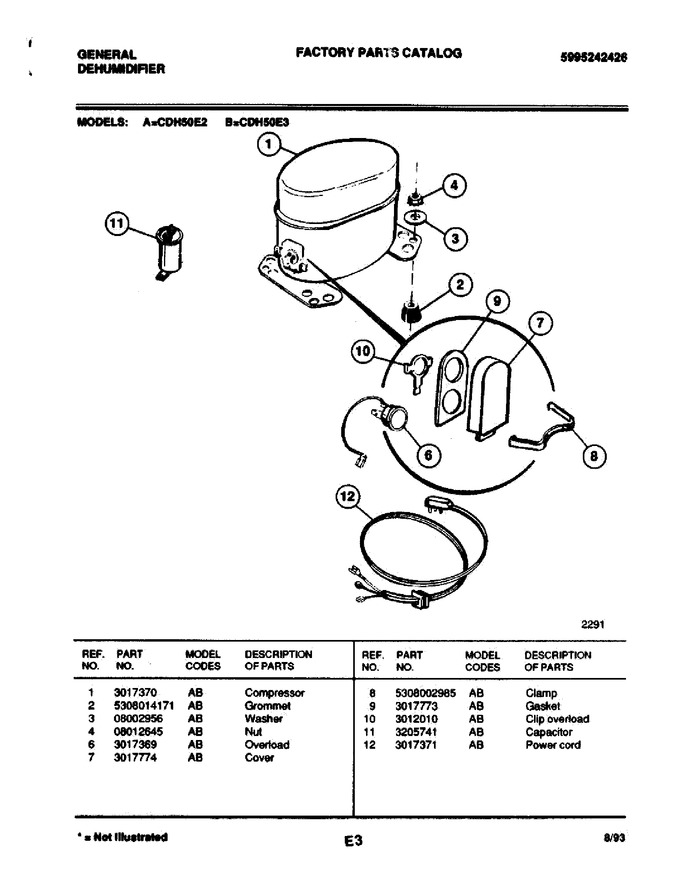

05 - Compressor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017370 | Compressor |
|
- | |||||
| 2 | 5308014171 | Grommet |
|
- | |||||
| 3 | 08002956 | Washer |
|
- | |||||
| 4 | 08012645 | Nut |
|
- | |||||
| 6 | 3017369 | Overload |
|
- | |||||
| 7 | 3017774 | Cover |
|
- | |||||
| 8 | 5308002985 | Clamp |
|
- | |||||
| 9 | 3017773 | Gasket |
|
- | |||||
| 10 | 3012010 | Clip-overload |
|
- | |||||
| 11 | 3205741 | Capacitor |
|
- | |||||
| 12 | 3017371 | Power Cord |
|
- |
