SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Oven

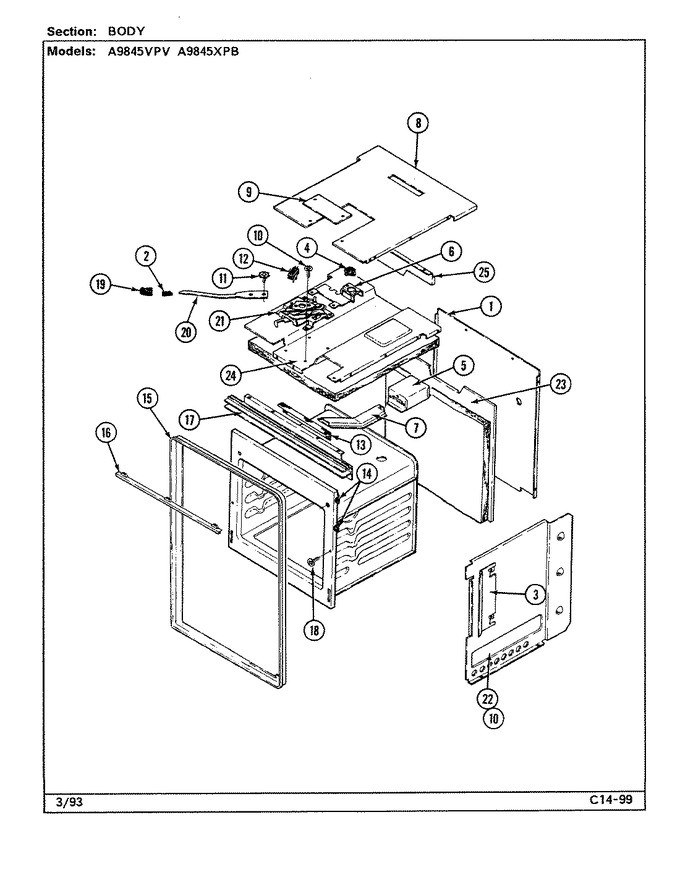

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F121-51		Back, Main	01	Appelez-nous	-
2	7112P003-60		Clip, Latch Handle	01	Appelez-nous	-
3	3601F130-51		Baffle, Side	01	Appelez-nous	-
4	7403P063-60		Switch, High Limit	01			$ 156.41
5	4006W046-15		Box, Vent	01	Appelez-nous	-
6	3801F128-45		Bracket, Hi Limit	01	Appelez-nous	-
7	3818W002-15		Channel, Vent Assembly	01	Appelez-nous	-
8	4005F202-51		Cover, Box	01	Appelez-nous	-
9	4005F160-45		Cover, Lock	01	Appelez-nous	-
10	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
11	WP4159193		Screw   (Replaces: 7101P115-60)	01			$ 4.29
12	7403P007-60		Switch, Door Lock	01	Appelez-nous	-
12	7101P035-60		Screw, Switch	01	Appelez-nous	-
13	3604F048-80		Shield, Terminal	01	Appelez-nous	-
14	7112P020-60		Clip, Oven Front	01	Appelez-nous	-
15	7103P051-60		Nut, Snap	01	Appelez-nous	-
15	7103P040-60		Nut, Snap (wht)	01	Appelez-nous	-
15	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	01			$ 9.89
15	7750P025-60		Extrusion, Front Frame (blk)	01	Appelez-nous	-
16	7706P163-60		Extrusion, Retainer (blk)	01	Appelez-nous	-
17	7756P022-60		Extrusion, Vent (blk)	01	Appelez-nous	-
18	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	01			$ 15.94
19	7701P088-60		Handle, Latch (blk)	01	Appelez-nous	-
20	8009P011-60		Lever, Latch	01	Appelez-nous	-
21	8002P072-60		Latch Assy.   (Replaces: 8002P016-60)	01			$ 306.52
21	3801F127-51		Bracket, Door Latch	01	Appelez-nous	-
21	7003P001-60		Insulator	01	Appelez-nous	-
22	2618F053-51		Panel, Side (rt)	01	Appelez-nous	-
22	2618F054-51		Panel, Side (lt)	01	Appelez-nous	-
23	3804F096-51		Retainer, Rear	01	Appelez-nous	-
24	3804F053-51		Retainer,top	01	Appelez-nous	-
25	3604F101-80		Shield, Air	01	Appelez-nous	-
