SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
New Model Search:

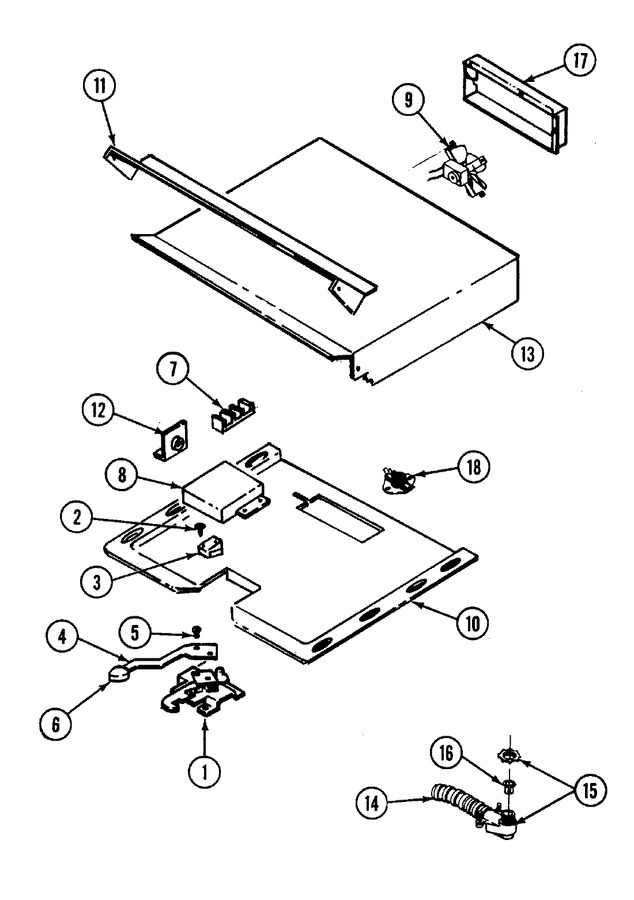

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4804F028-60 | Insulation, Latch Assy. | 01 |
|
- | ||||
| 1 | 8002P025-60 | Latch Assy. | 01 |
|
- | ||||
| 2 | 7101P130-60 | Screw, Latch Switch | 01 |
|
- | ||||
| 3 | 7003P051-60 | Insulation, Fiberboard | 01 |
|
- | ||||
| 3 | 7403P325-60 | Switch, Door Latch----na | 01 |
|
- | ||||
| 4 | 8009P020-60 | Lever | 01 |
|
- | ||||
| 5 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 01 |
|
$ 4.29 | ||||
| 6 | 7701P133-60 | Handle, Door Latch (wht) | 01 |
|
- | ||||
| 6 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 7 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 01 |
|
Immediately | $ 31.65 | |||
| 8 | 4005F428-80 | Cover | 01 |
|
- | ||||
| 9 | 7427P010-60 | Fan Assy. | 01 |
|
- | ||||
| 10 | 3804F111-51 | Retainer, Top Insulation | 01 |
|
- | ||||
| 11 | 4005F431-51 | Cover, Fan Housing | 01 |
|
- | ||||
| 12 | 3605F174-51 | Plate, Conduit Tubing | 01 |
|
- | ||||
| 13 | 4001F092-51 | Housing, Fan | 01 |
|
- | ||||
| 14 | 5140A037-60 | Wires, Conduit Tubing | 01 |
|
- | ||||
| 14 | 3414F066-51 | Tubing, Conduit | 01 |
|
- | ||||
| 15 | 7417P005-60 | Connector, Conduit | 01 |
|
- | ||||
| 16 | 8008P017-60 | Grommet | 01 |
|
- | ||||
| 17 | 4005F262-51 | Cover, Fan | 01 |
|
- | ||||
| 18 | 5125A343-60 | Harness, Wire Loose | 01 |
|
- | ||||
| 18 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 18 | 5170D175-60 | Harness, Main Wire | 01 |
|
- | ||||
| 18 | 7403P313-60 | Switch, Hi-limit | 01 |
|
- |
