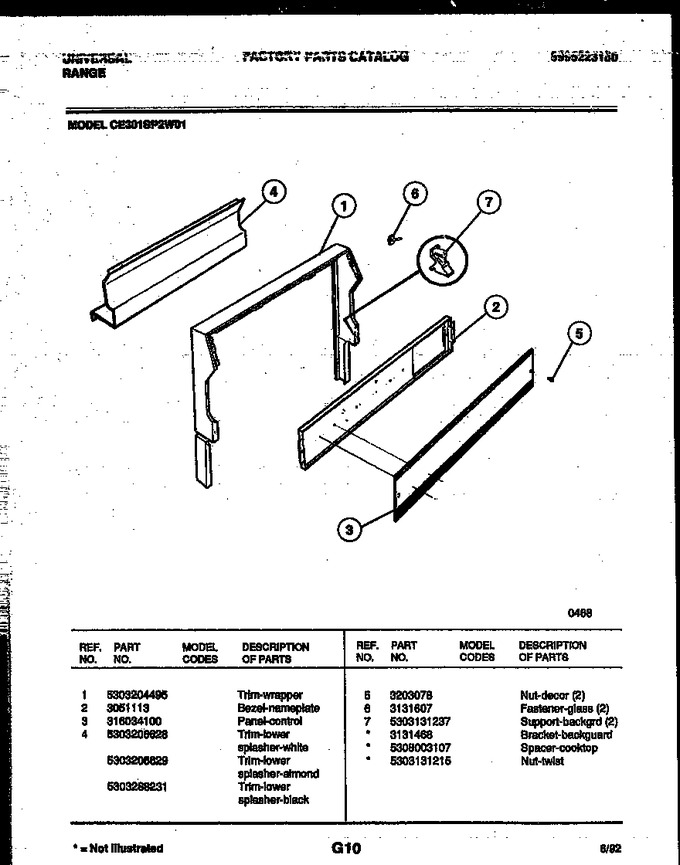

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Body Parts
03 - Backguard
04 - Door Parts
05 - Cooktop And Broiler Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303204495 | Trim-wrapper |
|
- | |||||
| 2 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 3 | 316034100 | Panel-control |
|
- | |||||
| 4 | 5303206628 | Trim-lower Splasher-white |
|
- | |||||
| 5 | 3203078 | Nut-decor (2) |
|
- | |||||
| 6 | 3131607 | Fastener, Glass (2) |
|
- | |||||
| 7 | 5303131237 | Support-backgrd (2) |
|
- | |||||
| *73830 | 3131468 | Bracket, Backguard |
|
- | |||||
| *73830 | 5308003107 | Spacer-cooktop |
|
- | |||||
| *73830 | 5303131215 | Nut, Twist |
|
- |
