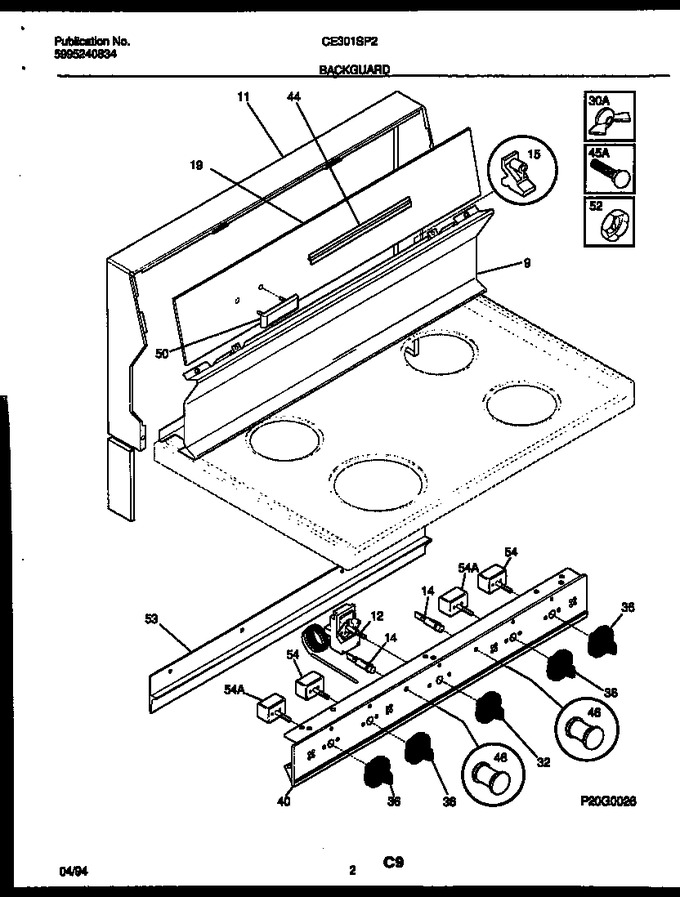

02 - Backguard
03 - Body Parts
04 - Cooktop And Drawer Parts
05 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 316043602 | Trim-splasher, Almond |
|
- | |||||
| 11 | 316057002 | Trim-wrapper |
|
- | |||||
| 12 | 5303210266 | Thermostat-oven |
|
- | |||||
| 14 | 5303210270 | Light/lamp, Indicator, Red, 250 V, (2) |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 19 | 316034107 | Panel, Control, Metal |
|
- | |||||
| 32 | 5303288321 | Knob-thermostat |
|
- | |||||
| 36 | 5303288320 | Knob-control, Infinite Sw |
|
- | |||||
| 40 | 316009221 | Panel-manifold |
|
- | |||||
| 44 | 3131468 | Bracket, Backguard |
|
- | |||||
| 46 | 316040200 | Lens-light/lamp, Indicator, Amber |
|
- | |||||
| 50 | 316052100 | Bezel-nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist |
|
- | |||||
| 53 | 3204623 | Shield-heat, Extrusion |
|
- | |||||
| 54 | 5303051540 | Switch-6`` Element |
|
- | |||||
| 30A | 316056800 | Nut-wing, Nylon |
|
- | |||||
| 45A | 316056900 | Bolt-fastener, Nylon |
|
- | |||||
| 54A | 5301313767 | Switch-8`` Element |
|
- |
