SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Door Parts


04 - Body Parts


05 - Drawer Parts


06 - Broiler Parts


07 - Cooktop Parts

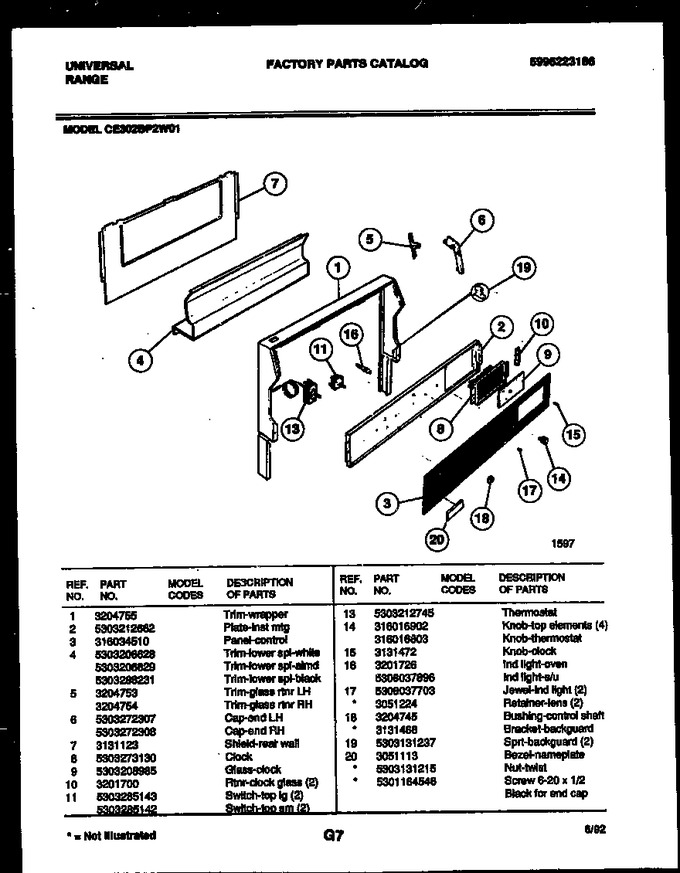

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204755		Trim, Wrapper		Appelez-nous	-
2	5303212662		Plate - Inst Mtg		Appelez-nous	-
3	316034510		Panel-control		Appelez-nous	-
4	5303206628		Trim-lower Spl-white		Appelez-nous	-
4	5303288231		Trim-lower Spl-black		Appelez-nous	-
4	5303206629		Trim-lower Spl-almd		Appelez-nous	-
5	3204754		Trim-glass Rtnr Rh		Appelez-nous	-
5	3204753		Trim-glass Rtnr Lh		Appelez-nous	-
6	5303272308		Cap-end-rh		Appelez-nous	-
6	5303272307		Cap-end-lh		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	5303273130		Clock		Appelez-nous	-
9	5303208985		Glass-clock		Appelez-nous	-
10	3201700		Rtnr-clock Glass (2)		Appelez-nous	-
11	5303935086		Switch-top Sm (2)   (Replaces: 5303285142)			Immediately	$ 51.95
11	5303285143		Switch-top Lg (2)		Appelez-nous	-
13	5303212745		Thermostat		Appelez-nous	-
14	316016902		Knob-top Elements (4)		Appelez-nous	-
14	316016803		Knob-thermostat		Appelez-nous	-
15	3131472		Knob-clock		Appelez-nous	-
16	5308037896		Indicator Light				$ 39.75
16	3201726		Ind Light-oven		Appelez-nous	-
17	5308037703		Jewel-ind Light (2)		Appelez-nous	-
17	3051224		Retainer-lens (2) (non-illustrated)		Appelez-nous	-
18	3131468		Bracket-backguard (non-illustrated)		Appelez-nous	-
18	3204745		Bushing, Control Shaft		Appelez-nous	-
19	5303131237		Sprt-backguard (2)		Appelez-nous	-
20	3051113		Bezel, Nameplate		Appelez-nous	-
*74676	5303131215		Nut, Twist		Appelez-nous	-
*74676	5301164546		Screw 6-20 X 1/2 Black For End Cap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
